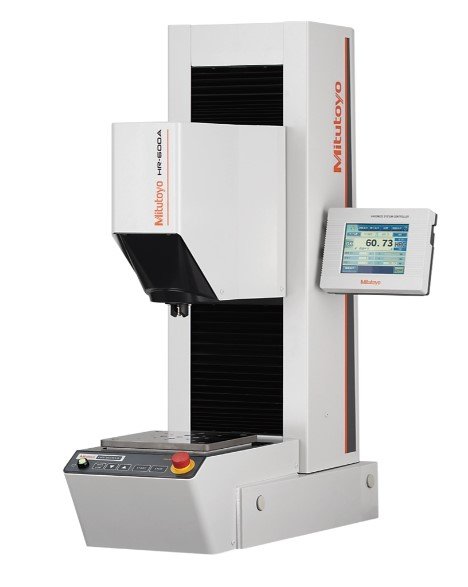

Mitutoyo 810-522-23 | HR-620A Rockwell Hardness Tester | 9.8-2450 N, 250 mm Z-Axis
Covering test forces from 9.8 to 2450 N (1 to 250 kgf), the Mitutoyo 810-522-23 HR-620A Rockwell hardness tester handles specimens up to 250 mm high and 100 kg on a 250 mm Z-axis. Control is by 5.7 in touch screen, with AVPAK software available as an option.
- 0.01 HR settable resolution
- 220 mm throat depth; optional X-axis
- Dwell time 1-120 s, set in 1 s steps
- Outputs: RS-232C, Digimatic D-type, USB (PDF/Excel with AVPAK)
- Main unit 181 kg; 350 x 681 x 935 mm
- Conforms to ISO 6508-2, ASTM E18 and JIS B7726
- Specifications
- Features
- Downloads
| Part Number | 810-522-23 |
| Brand | Mitutoyo |
| Model | HR-620A (mm/inch) |
| Mass | 181 kg (399.0 lb) |
| Standards | ISO 6508-2, ASTM E18, JIS B7726 |
| Dimensions | 350 x 681 x 935 mm (13.8×26.8×36.8 in) |
| Resolution | 0.01 HR (settable) |
| Data Output | RS-232C, Digimatic D-type, USB |
| Max Specimen Height | 250 mm (9.84 in) |
| Throat Depth | 220 mm (8.66 in) |
| Test Force | 9.8-2450 N (1-250 kgf) |
| Max Specimen Weight | 100 kg (220.5 lb) |
| Control | 5.7" touch screen, AVPAK software optional |
| Z-Axis | 250 mm (9.84 in) |
- Standard Compliance: Conforms to ISO, JIS, and ASTM standards for accurate and reliable hardness testing.
- Dual Measurement Units: Offers both metric and inch measurement options for versatile material testing.
- Wide Temperature Range: Operates efficiently between 5°C and 40°C, ensuring stable performance in various conditions.
- Low Vibration: Vibration frequency of 5Hz or lower minimizes interference for precise and consistent results.
- Compact and Robust: External dimensions of 350 x 681 x 935 mm make it ideal for industrial and laboratory settings.
- Durable & Reliable: Built for long-lasting performance, providing repeatable, high-precision results for quality control and material analysis.
Related Products

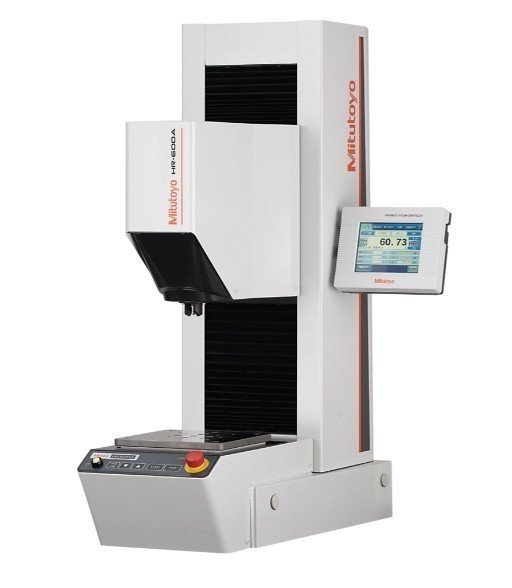

Mitutoyo 810-512-23 | HR-610A Rockwell Hardness Tester | 29.42-1839 N, 250 mm Z-Axis
Mitutoyo 810-512-23 | HR-610A Rockwell Hardness Tester | 29.42-1839 N, 250 mm Z-Axis

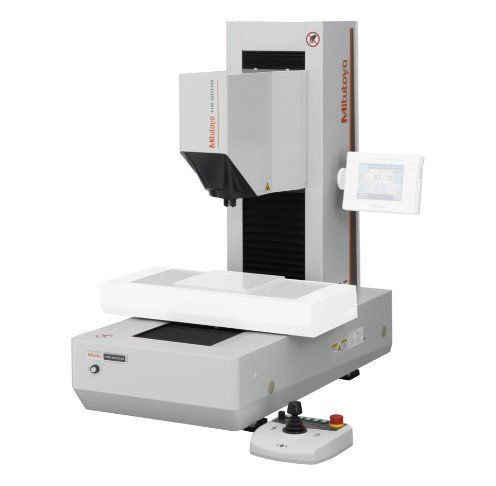

Mitutoyo 810-527-21 | HR-620B Rockwell Hardness Tester | 9.8-2450 N, Integrated Y-Axis
Mitutoyo 810-527-21 | HR-620B Rockwell Hardness Tester | 9.8-2450 N, Integrated Y-Axis

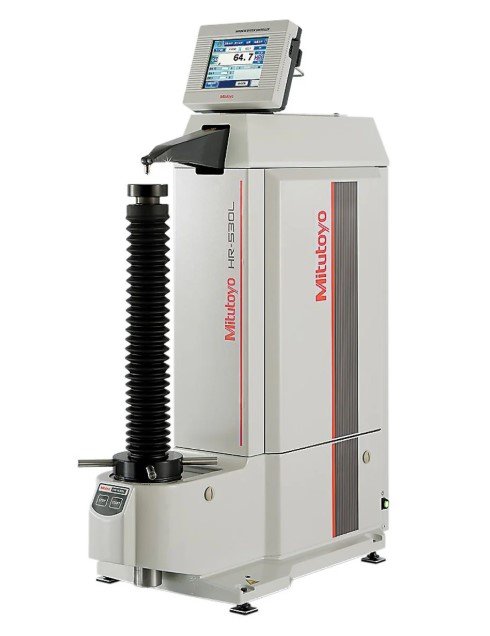

Mitutoyo 810-333-33 | HR-530L Rockwell Hardness Tester | 395 mm Specimen Height
Mitutoyo 810-333-33 | HR-530L Rockwell Hardness Tester | 395 mm Specimen Height
Mitutoyo 810-233-33 | HR-530 Rockwell Hardness Tester | 29.42-1839 N, Touch Screen
Mitutoyo 810-233-33 | HR-530 Rockwell Hardness Tester | 29.42-1839 N, Touch Screen

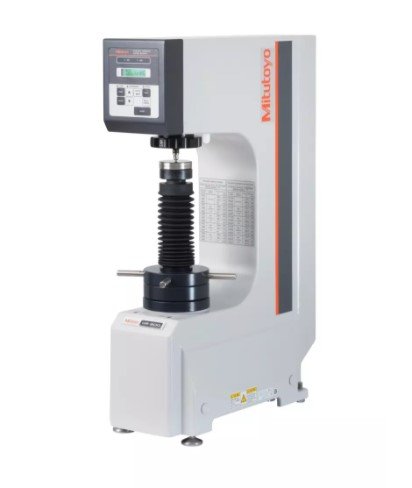

Mitutoyo 810-193-31 | HR-430MR Rockwell Hardness Tester | 588-1471 N, 0.1 HR
Mitutoyo 810-193-31 | HR-430MR Rockwell Hardness Tester | 588-1471 N, 0.1 HR
Mitutoyo 810-192-31 | HR-320MS Rockwell Hardness Tester | LCD, 0.1 HR Resolution
Mitutoyo 810-192-31 | HR-320MS Rockwell Hardness Tester | LCD, 0.1 HR Resolution

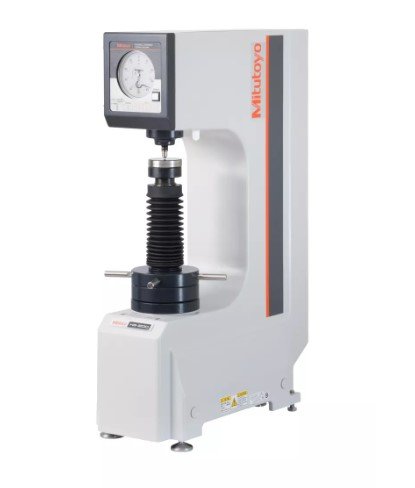

Mitutoyo 810-191-21 | HR-210MR Rockwell Hardness Tester | 588-1471 N, Analogue Dial
