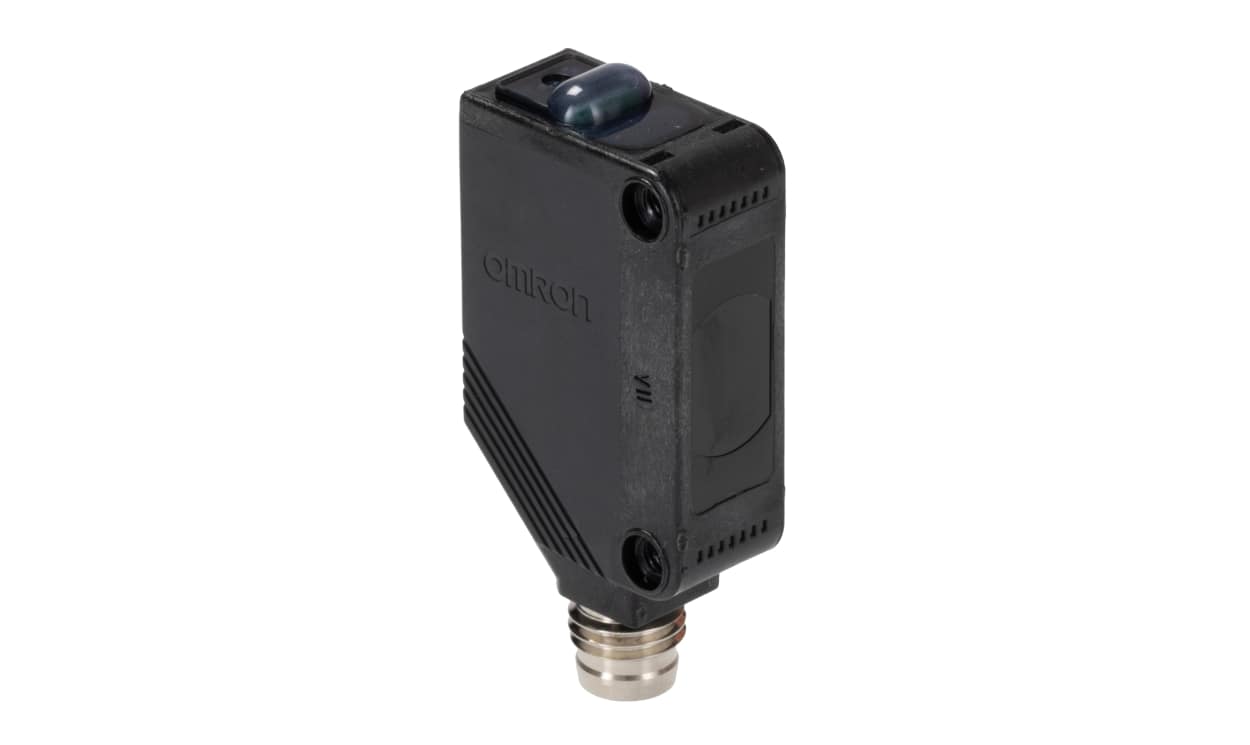

Omron E3Z-T86-L, Through Beam Photoelectric Sensor, Block Sensor, 15 m Detection Range - generaltechuae

Client Protection

Dedicated Support

Client Protection

Dedicated Support

OMRON E3Z-T86-L | Through-Beam Photoelectric Sensor | 15 m, PNP, M8 Plug-In

Part Number : E3Z-T86-L

OMRON's E3Z-T86-L through-beam photoelectric sensor provides a PNP output over a detection range of 15 m from a block-style body. It uses an M8 plug-in connector for connection, is fitted with an infrared light source and is rated IP67.

Up to 24 V DC supply
35 mA maximum current
Responds in 1 ms
Temperature range -25 °C to +55 °C
Body in PBT
Light-on / dark-on switching

Availability: low stock

Detailed Description
Specifications
Downloads

Omron E3Z Series Photoelectric Sensor, 15m Detection Range, PNP Output - E3Z-T86-L

This photoelectric sensor is designed for precise object detection across various automation and industrial applications. Its through beam technology provides reliable readings over a detection range of up to 15m. With an infrared light source, it meets the requirements of environments that demand robust performance and high resistance to dust and moisture.

Features & Benefits

• Utilises infrared technology for accurate detection
• 15m detection range for versatility
• PNP output compatible with various systems
• Light/dark switching feature for flexible Applications
• Response time of 1ms ensures quick operation

Applications

• Automated assembly lines for item detection
• Packaging machinery requiring precise control
• Material handling systems
• Robotics for accurate object positioning
• Automotive manufacturing processes

What type of connection does it use for installation?

It employs an M8 plug-in connection for easy wiring.

Can it operate in extreme temperatures?

Yes, it functions between -25°C and +55°C, suitable for various environments.

Is it suitable for outdoor applications?

While it has an IP67 rating, ensure the installation site is sheltered from direct exposure to harsh weather.

How does it handle different surfaces?

It can detect a range of surfaces and materials due to its adjustable light/dark switching feature.

What power supply is required for its operation?

It operates on a maximum DC voltage of 24V, compatible with standard systems.

Brand	Omron
Sensor Style	Block
Detection Type	Through Beam
Detection Range	15 m
Output Type	PNP
Electrical Connection	M8 plug-in
Switching Mode	Light / Dark switching
Maximum DC Voltage	24V
Light Source	Infrared
IP Rating	IP67
Maximum Current	35 mA
Response Time	1 ms
Minimum Operating Temperature	-25°C
Series	E3Z
Maximum Operating Temperature	+55°C
Housing Material	PBT
Standards Met	CE
