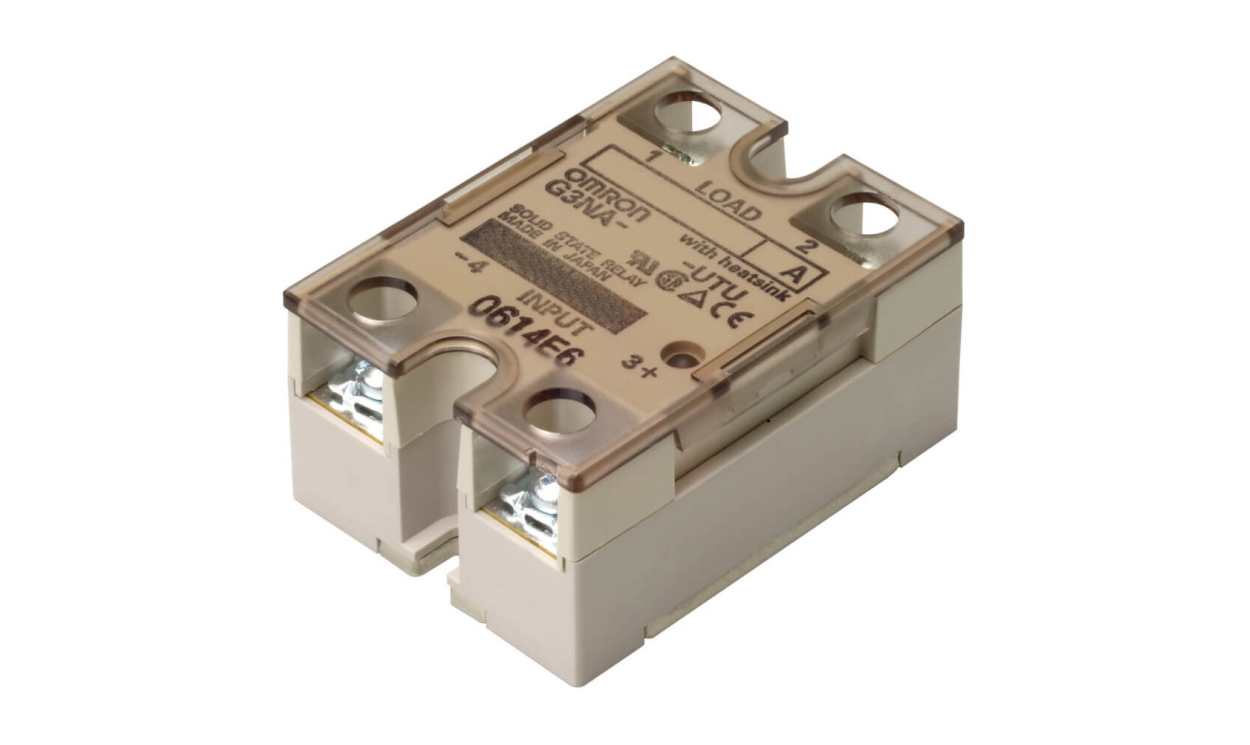

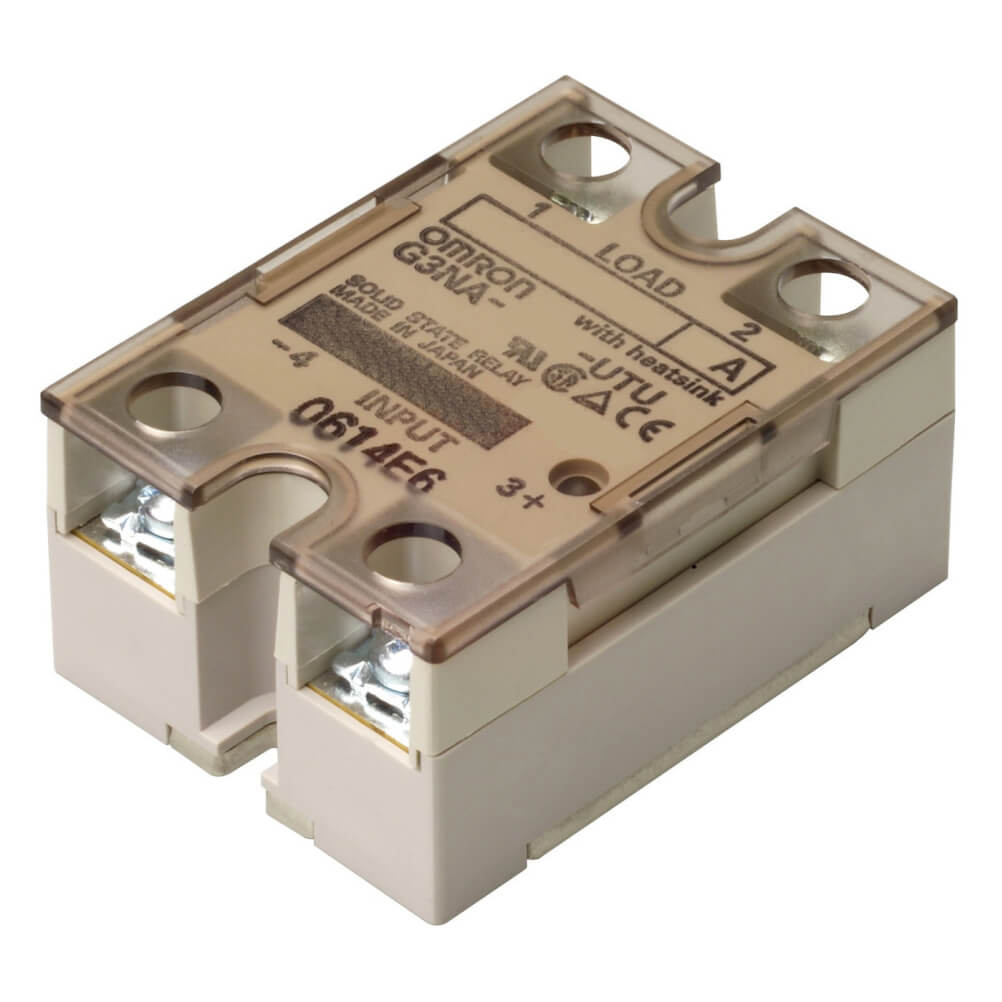

Name: Omron G3NA-450B-UTU-2 5-24VDC, G3NA Series Solid State Relay, 50 A Load, Chassis Mount, 480 V ac Load
Brand: OMRON
SKU: G3NA-450B-UTU-2 5-24VDC
Availability: OutOfStock

Omron G3NA-450B-UTU-2 5-24VDC, G3NA Series Solid State Relay, 50 A Load, Chassis Mount, 480 V ac Load

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron G3NA-450B-UTU-2 5-24VDC, G3NA Series Solid State Relay, 50 A Load, Chassis Mount, 480 V ac Load

Part Number : G3NA-450B-UTU-2 5-24VDC

Solid state relay, surface mounting, zero crossing, 1-pole, 50 A, 200 to 480 VAC

Availability: Sold out

Detailed Description
Specifications
Features

Omron G3NA Series Solid State Relay, 30x43x58mm, Screw Mount - G3NA-450B-UTU-2 DC5-24

This solid state relay efficiently controls electrical loads in various automated systems. With a high current capacity of 50 A and a maximum load voltage of 480 Vac, it is suitable for industrial applications. Its compact screw mount design allows for easy installation and integration into existing systems, enhancing operational dependability.

Features & Benefits

• Operates within a temperature range of -30°C to +80°C
• Photocoupler output provides galvanic isolation and maintains signal integrity
• Space-saving mounting allows for uniform installation across multiple devices

Applications

• Load control in industrial automation systems
• Switching of resistive, inductive, and capacitive loads
• Use in heating equipment and motor control circuits
• Compatibility with various input signals for flexible integration

What ambient temperatures can be tolerated?

It functions effectively within -30°C to +80°C without performance issues.

How should it be mounted for optimal performance?

Utilise a screw mount method to ensure stability and secure operation.

What type of output does this relay provide?

It features a photocoupler output for enhanced isolation and safety.

What protective measures should be taken during installation?

Ensure proper ventilation and use an appropriate heat sink to maintain optimal temperature.

Brand	Omron
Maximum Load Current	50 A
Mounting Type	Chassis Mount
Maximum Load Voltage	480 V ac
Minimum Load Voltage	200 VAC
Switching Type	Zero Cross
Terminal Type	Screw
Output Device	Photocoupler
Relay Type	Solid State Relay
Series	G3NA
Load Voltage Range	200 → 480V ac
Dimensions	30 x 43 x 58mm
Depth	30mm
Operating Temperature Range	-30 → +80°C
Height	58mm
Minimum Operating Temperature	-30°C
Maximum Operating Temperature	+80°C
Standards Met	CSA, UL

Solid state relay, surface mounting, zero crossing, 1-pole, 50 A, 200 to 480 VAC
