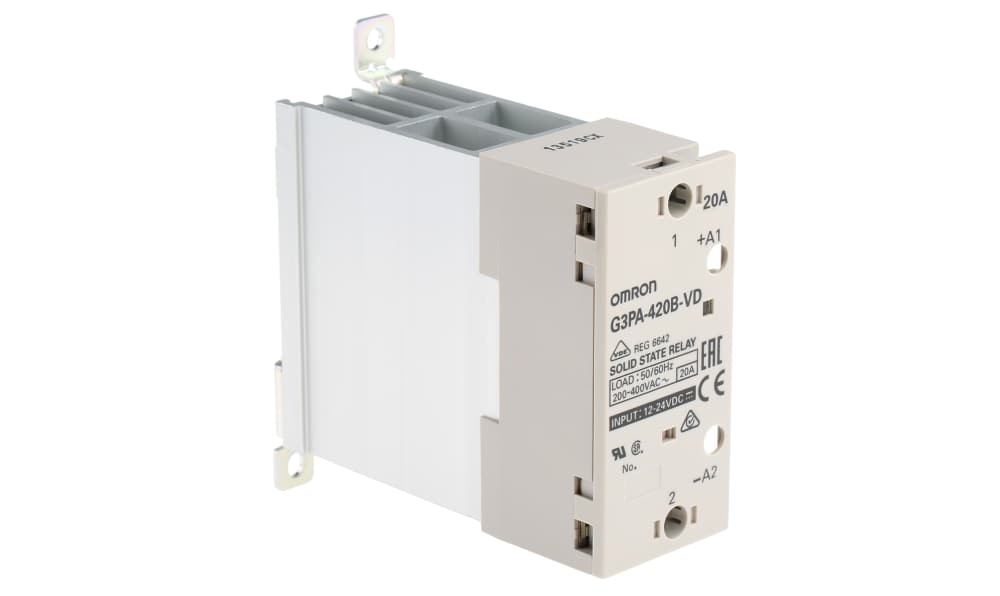

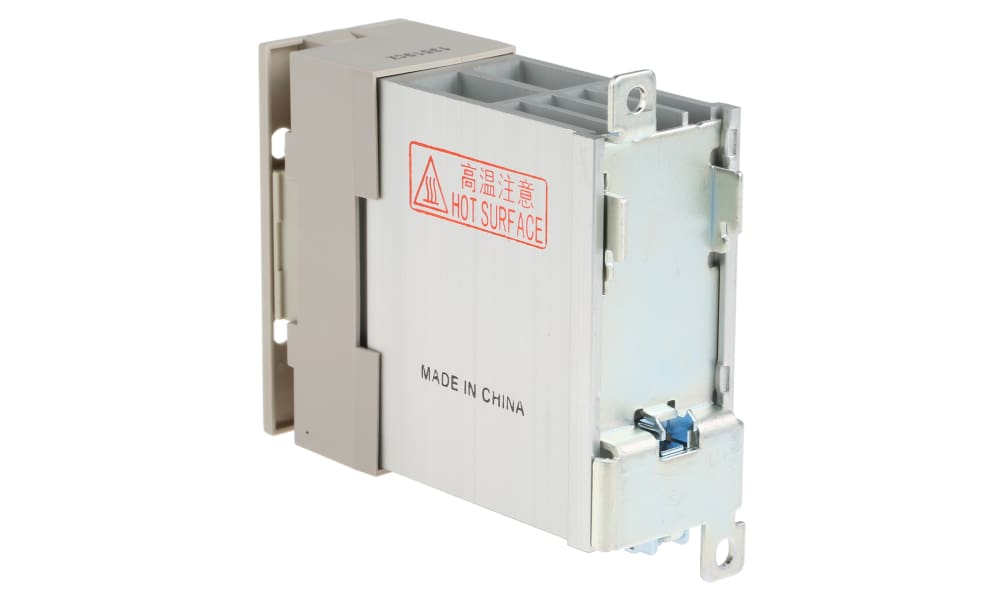

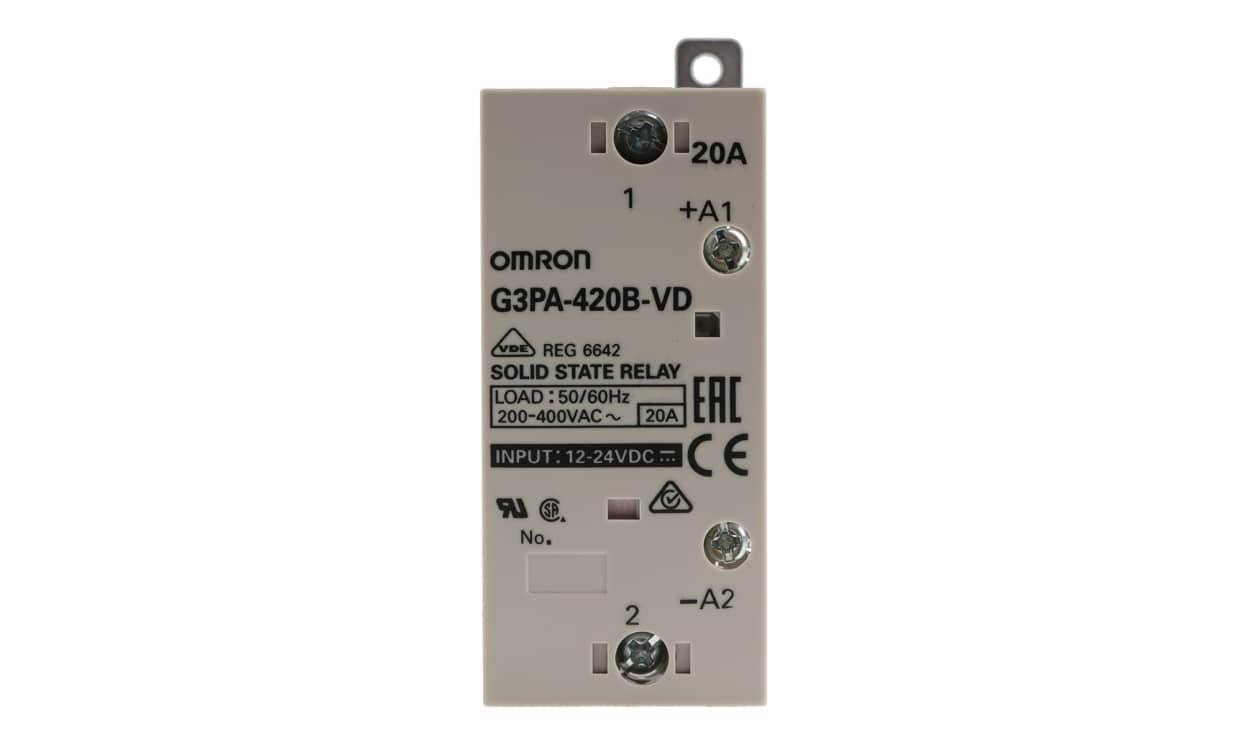

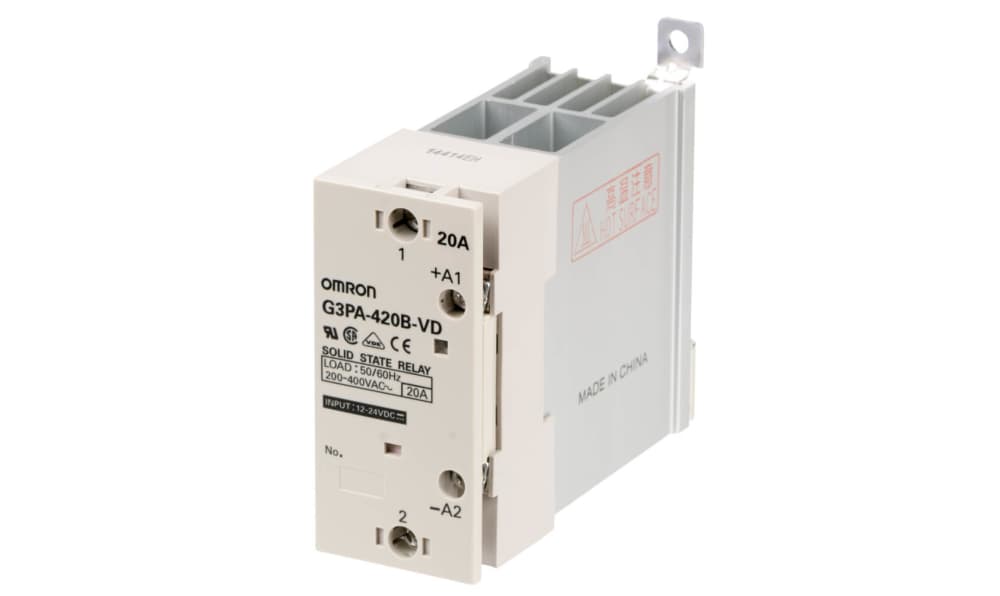

Omron G3PA-420B-VD 12-24VDC, G3PA Series Solid State Relay, 20 A Load, DIN Rail Mount, 440 V Load, 30 V Control
Part Number : G3PA-420B-VD 12-24VDC
For pricing, please contact our experts.
Omron G3PA Series Solid State Relay, SPST-NO Contact Configuration, 9.6 to 30V DC Control Voltage Range - G3PA-420B-VD DC12-24
This solid state relay is designed for effective control in automation and electrical applications. With a load current capability of 20A and a voltage rating of 440V, it mounts easily on a DIN rail. Its compact dimensions of 100x37x100mm make it suitable for environments with limited space.
Features & Benefits
• Compatible with load voltages ranging from 180V to 440V
• High temperature operation up to +80°C
• Triac output ensures stable performance
• Fast turn-on time of 1/2 cycle + 1ms
• Simple mounting using screws or DIN rail
• SPST-NO contact configuration for straightforward switching
• High temperature operation up to +80°C
• Triac output ensures stable performance
• Fast turn-on time of 1/2 cycle + 1ms
• Simple mounting using screws or DIN rail
• SPST-NO contact configuration for straightforward switching
Applications
• Used in three-phase industrial equipment
• Suitable for controlling motors and heating elements
• Effective in automated machinery for load management
• Ideal for integration into control panels
• Applicable across various machinery in manufacturing processes
• Suitable for controlling motors and heating elements
• Effective in automated machinery for load management
• Ideal for integration into control panels
• Applicable across various machinery in manufacturing processes
Can it handle a range of control voltages?
Yes, it operates with control voltages from 9.6 to 30V.
Is it easy to mount on standard tracks?
Yes, it can be mounted effortlessly on DIN tracks.
Will it remain functional under extreme temperatures?
It operates effectively between -30°C and +80°C.
Can it be used for both AC and DC loads?
Yes, it is compatible with both AC and DC loads.
Approvals
UL; CSA
Zero Voltage Relays
Note
Temperature can affect current rating; please consult the data sheet for potential derating.
