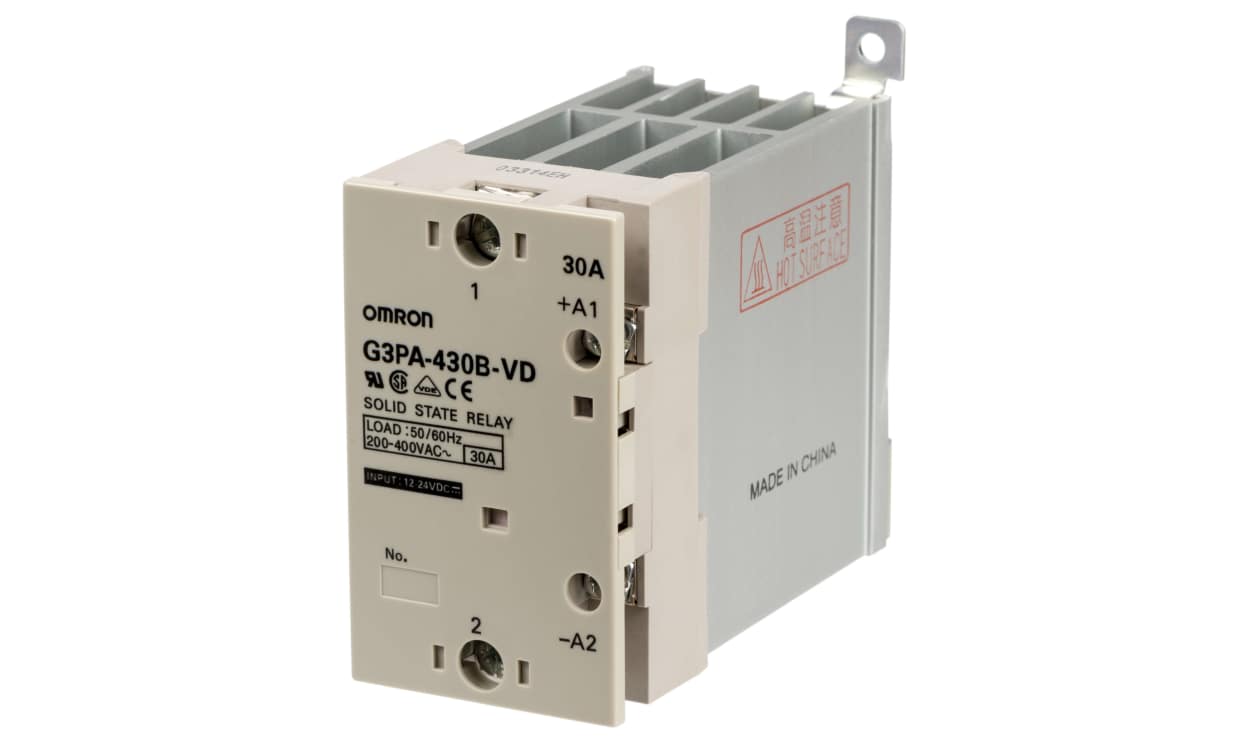

Omron G3PA-430B-VD-2 12-24VDC, Series Solid State Relay, 30 A Load, DIN Rail, Surface Mount, 480 V ac Load

Part Number : G3PA-430B-VD-2 12-24VDC

Availability: Sold out

Detailed Description
Specifications

The Omron solid state relays which are extremely thin integrated with heatsinks. These relays are applicable with 3-phase loads and it has replaceable power element cartridges. The rated load current of this relay is 30 A and load voltage is 180 to 528 VAC. It has DIN rail /Surface mounting and termination is done with screw terminals.

Comply with VDE 0160 (finger protection), with a dielectric strength of 4,000 V between input and load
Downsizing achieved through optimum design of heat sink

Brand	Omron
Maximum Load Current	30 A
Mounting Type	DIN Rail, Surface Mount
Maximum Load Voltage	480 V ac
Minimum Load Voltage	180 V
Switching Type	Zero Crossing
Minimum Load Current	500 mA
Range	G3PA
Contact Configuration	SPST-NO
Output Device	Triac
Series	G3PA-430B-VD-2 12-24VDC
