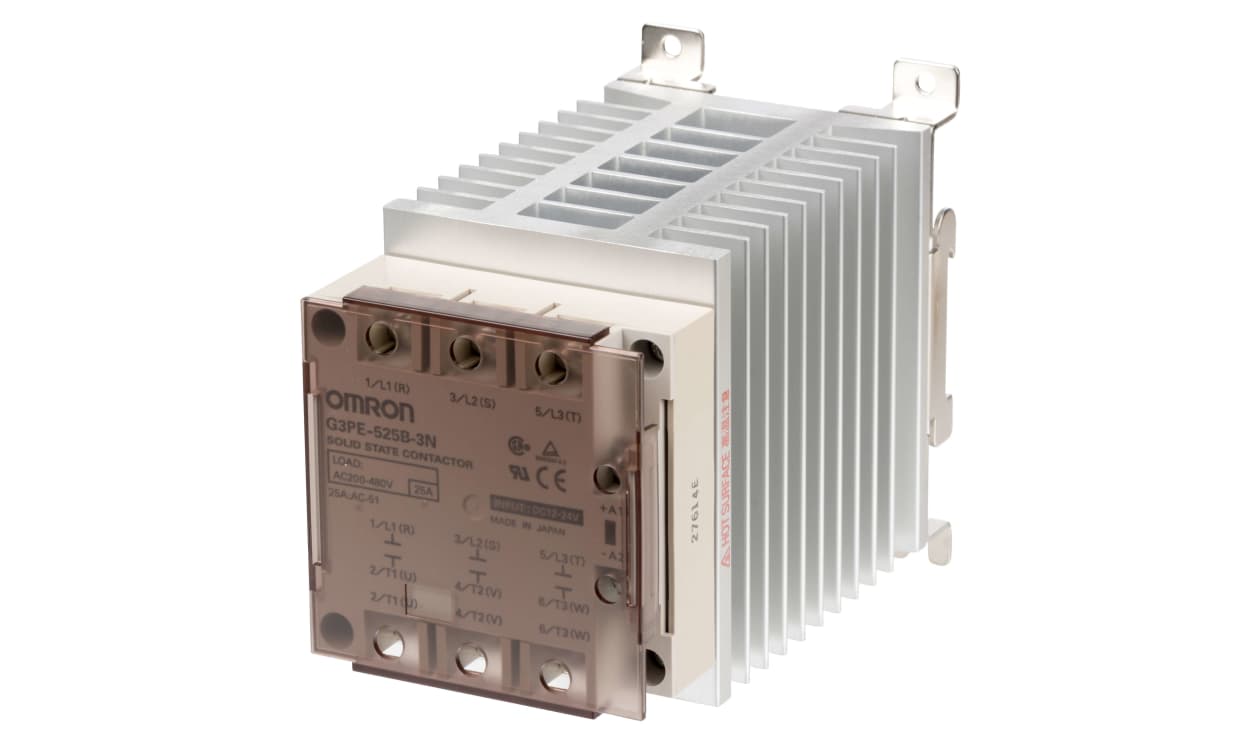

Omron G3PE-225B-3N 12-24VDC, Series Solid State Relay, 25 A Load, DIN Rail Mount, 264 V ac Load

Name: Omron G3PE-225B-3N 12-24VDC, Series Solid State Relay, 25 A Load, DIN Rail Mount, 264 V ac Load
Brand: OMRON
SKU: G3PE-225B-3N 12-24VDC
Availability: OutOfStock

Part Number : G3PE-225B-3N 12-24VDC

Availability: Sold out

Detailed Description
Specifications

The Omron solid state relays which are compact, slim-profile and integrated with heatsinks. These solid state relays have surge pass protection which improved surge dielectric strength for output currents. It has DIN track type mounting and operation indicator (yellow colored). The rated input voltage of this single phase solid state relay is 12 to 24 VDC.

RoHS compliant
Applicable load is 25 A, 100 to 240 VAC
Insulation method is phototriac coupler

Brand	Omron
Maximum Load Current	25 A
Mounting Type	DIN Rail
Maximum Load Voltage	264 V ac
Minimum Load Voltage	75 V ac
Switching Type	Zero Crossing
Range	G3PE
Minimum Load Current	100
Contact Configuration	3PST-NO
Output Device	Triac
Series	G3PE-225B-3N 12-24VDC
