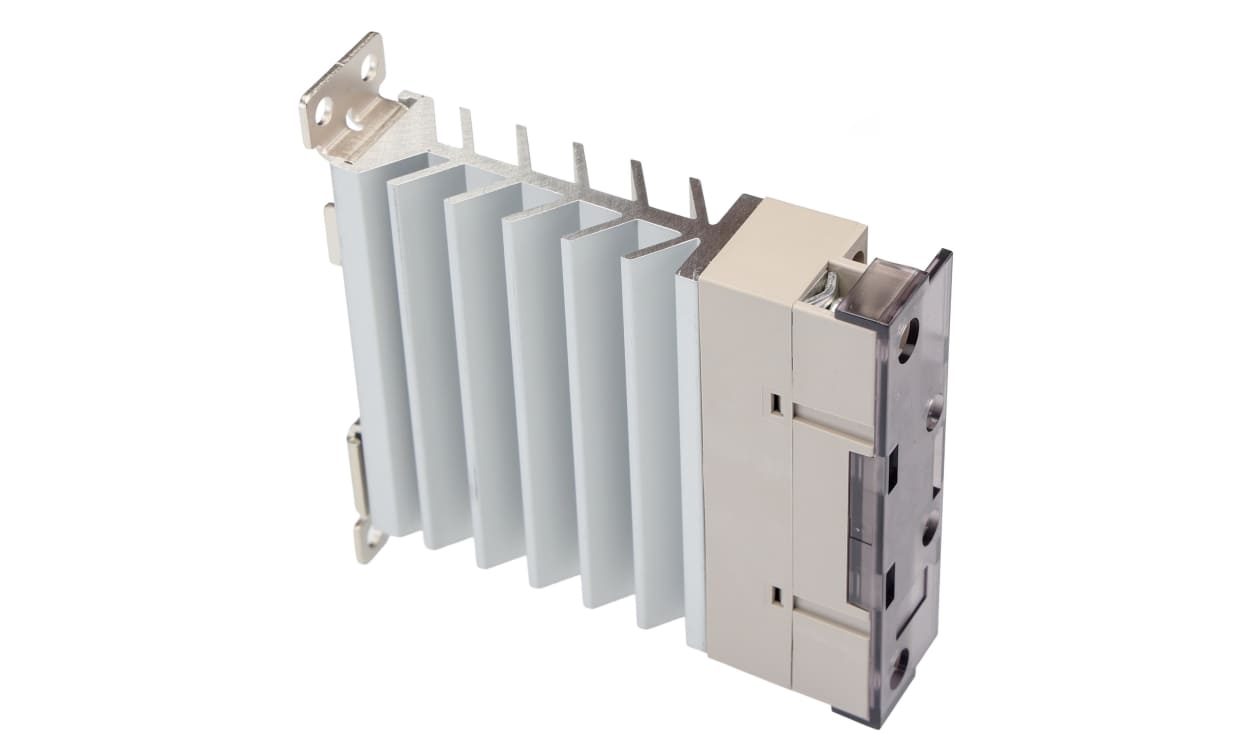

Omron G3PE-515B 12-24VDC, G3PE Series Solid State Relay, 15 A Load, DIN Rail Mount, 528 V ac Load, 24 V dc Control

Part Number : G3PE-515B 12-24VDC

Availability: Sold out

Detailed Description
Specifications

Omron G3PE Series Solid State Relay, 15A Maximum Load Current, 24V DC Maximum Control Voltage - G3PE-515B 12-24VDC

This solid state relay is a versatile component ideal for automation and control applications. With a maximum load current of 15A and dimensions of 22.5 x 100 x 100mm, this device seamlessly integrates into various systems. Designed for use on a DIN rail, it operates within a control voltage range of 12 to 24V DC, making it suitable for multiple configurations.

Features & Benefits

• High voltage ratings accommodate loads from 180 to 528V AC
• Zero cross switching minimises electrical noise and enhances lifespan
• SPST contact configuration allows for simple on/off switching
• Phototriac coupler provides excellent isolation and reliability
• Operating temperature range of -30 to +80°C supports challenging environments
• Minimal turn-on time of 1 ms ensures quick response

Applications

• Used with industrial heating systems to control power
• Suitable for conveyor belts in manufacturing setups
• Employed in HVAC systems for efficient temperature management
• Utilised in packaging machines for safety and automation

What electrical specifications are important for integration with existing systems?

The relay requires a control voltage of 12 to 24V DC and can switch loads of up to 15A at voltages between 180 and 528V AC, making it compatible with many industrial applications.

How does the zero cross switching feature enhance performance?

Zero cross switching allows the relay to turn on and off when the voltage is near zero, reducing electrical stress and noise. This prolongs the product's lifespan and ensures smoother operation.

What is the expected lifespan of this relay when operating under various temperature conditions?

With an operating temperature range between -30 to +80°C, the relay is engineered to function reliably within these limits, providing durability in demanding environments.

Is this relay compliant with international standards?

Yes, it complies with UL, CSA, and EN standards, ensuring safety and reliability in various applications.

Standards

UL508, CSA22.2 No.14, EN 60947-4-3.

Brand	Omron
Maximum Load Current	15 A
Mounting Type	DIN Rail
Maximum Load Voltage	528 V ac
Minimum Load Voltage	180 V ac
Maximum Control Voltage	24 V dc
Minimum Control Voltage	12 V dc
Switching Type	Zero Cross
Control Voltage Range	12 → 24 V dc
Minimum Load Current	0.1 A
Terminal Type	Screw
Contact Configuration	SPST
Output Device	Phototriac Coupler
Relay Type	Solid State Relay
Maximum Turn On Time	1 ms
Series	G3PE
Load Voltage Range	180 → 528V ac
Dimensions	22.5 x 100 x 100mm
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-30°C
