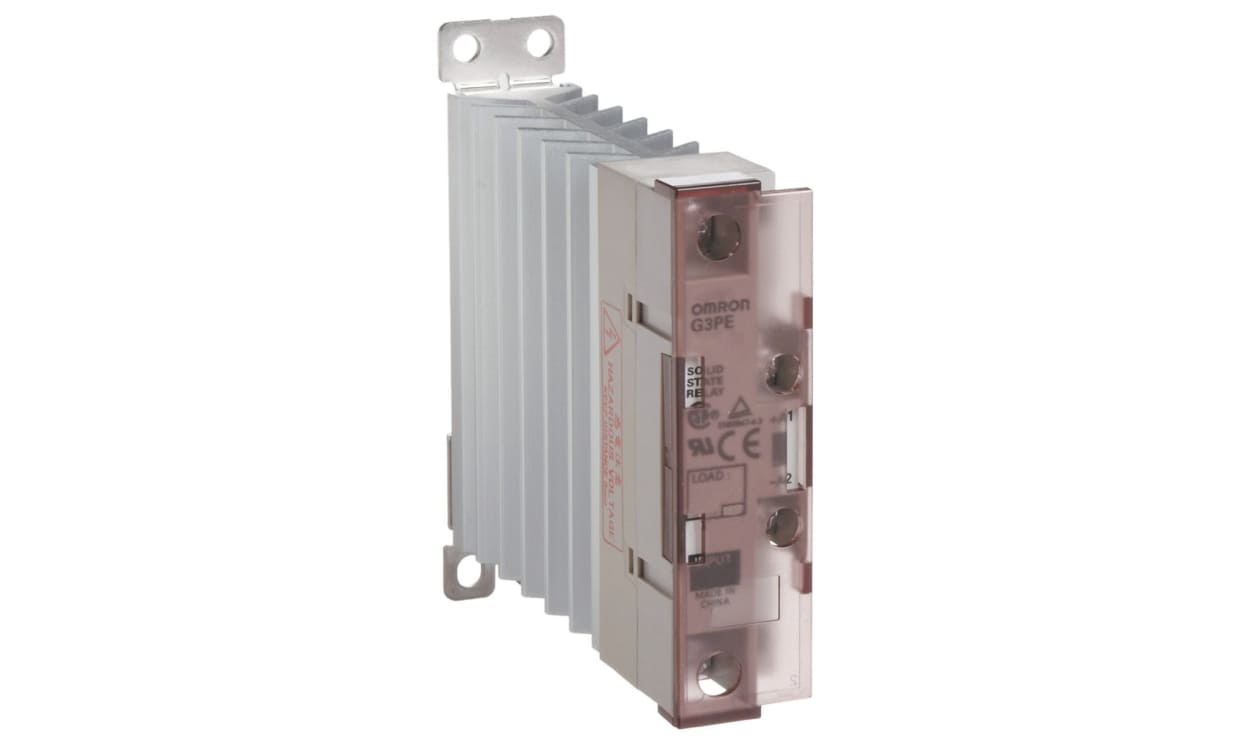

Omron G3PE-525B 12-24VDC, G3PE Series Solid State Relay, 25 A Load, DIN Rail Mount, 528 V ac Load, 30 V dc Control

Part Number : G3PE-525B 12-24VDC

Availability: Sold out

Detailed Description
Specifications

Omron G3PE Series Solid State Relay, SPST Contact Configuration, 9.6 to 30V DC Control Voltage Range - G3PE-525B DC12-24

This solid state relay is designed for efficient switching in various applications, including industrial automation. It is suitable for mounting on a DIN rail and has compact dimensions of 22.5x100x100mm. The relay supports a maximum load current of 25A and can handle voltages up to 528V ac, providing substantial performance in various settings.

Features & Benefits

• Load capacity of 25A for effective control
• Voltage range from 180V to 528V ac for diverse applications
• Control voltage range of 9.6V to 30V dc for adaptability
• SPST configuration for easy integration into circuits
• Operating temperature up to +80°C for reliable operation
• Phototriac coupler for improved switching performance

Applications

• Suitable for switching high voltage circuits
• Ideal for automation control systems
• Applicable for electric motor controls
• Used in industrial machinery and equipment
• Effective in HVAC control systems

Can it operate in temperatures as low as -30°C?

Yes, it operates within a temperature range of -30°C to +80°C.

Is it suitable for single-pole circuits?

Yes, it functions effectively as a single-pole device.

Will it manage the specified off state leakage current?

Yes, it has an off state leakage current of 20mA.

Standards

UL508, CSA22.2 No.14, EN 60947-4-3.

Brand	Omron
Maximum Load Current	25 A
Mounting Type	DIN Rail
Maximum Load Voltage	528 V ac
Minimum Load Voltage	180 V ac
Maximum Control Voltage	30 V dc
Minimum Control Voltage	9.6 V dc
Switching Type	Zero Cross
Control Voltage Range	9.6 → 30 V dc
Minimum Load Current	0.1 A
Number of Poles	1
Contact Configuration	SPST
Terminal Type	Screw
Output Device	Phototriac Coupler
Relay Type	Solid State Relay
Maximum Turn On Time	1/2 cycle + 1 ms
Load Voltage Range	180 → 528V ac
Series	G3PE
Dimensions	22.5 x 100 x 100mm
Length	22.5mm
