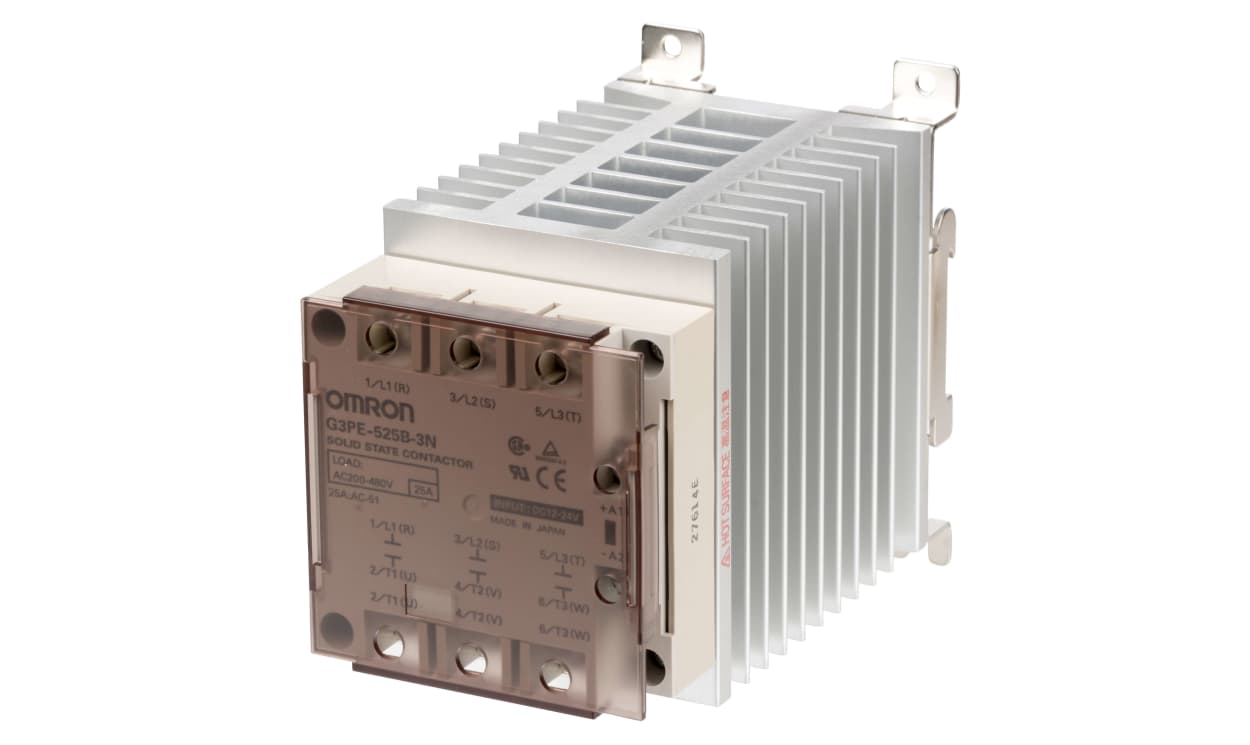

Omron G3PE-525B-3N 12-24VDC, Series Solid State Relay, 25 A Load, DIN Rail Mount, 528 V ac Load, 24 V dc Control

Part Number : G3PE-525B-3N 12-24VDC

Availability: Sold out

Detailed Description
Specifications

Omron G3PE-525B-3N 12-24VDC Series Solid State Relay, 25A Maximum Load Current, 528V Maximum Load Voltage - G3PE-525B-3N 12-24VDC

This solid state relay is designed for high-performance applications within automation and control systems. With a maximum output current of 25A, this unit supports a range of voltages, accommodating both low and high-voltage requirements. The device features a compact design measuring 80 x 120 x 155mm and is mounted on a DIN rail for easy installation. It operates efficiently within a temperature range of -30°C to +80°C, ensuring reliability in various environments.

Features & Benefits

• Delivers zero crossing switching for reduced electrical noise
• Supports control voltages from 12 to 24V DC for flexibility
• Capable of handling load voltages between 180 and 528V AC
• Offers a maximum turn-on time of 1ms for swift operation
• Features a triac output for effective power management
• Designed with an off-state leakage current of just 20mA

Applications

• Used for controlled switching in industrial automation systems
• Operates as a high voltage relay in power distribution
• Suitable for use in motor control circuits
• Integrates seamlessly into PLC and control panels
• Ideal for requiring solid state switching technology

What type of control voltage is required for operation?

The device operates with control voltages ranging from 12V DC to 24V DC, allowing for flexible integration into various systems.

How does the solid state relay manage high voltage loads effectively?

This solid state relay can handle a wide load voltage range of 180 to 528V AC, making it suitable for high voltage applications while ensuring safe operation.

What is the significance of the maximum turn-on time?

With a maximum turn-on time of just 1ms, this relay enables rapid switching, which is critical for applications requiring immediate responses, enhancing overall system efficiency.

What environmental conditions can this relay withstand?

This unit operates reliably over an extensive temperature range from -30°C to +80°C, making it versatile for different industrial environments.

How does the zero crossing technology benefit circuit operation?

Zero crossing technology minimises electrical transients and noise during switching, thereby extending the lifespan of both the relay and connected components.

Brand	Omron
Maximum Load Current	25 A
Mounting Type	DIN Rail
Maximum Load Voltage	528 V ac
Minimum Load Voltage	180 V ac
Maximum Control Voltage	24 V dc
Minimum Control Voltage	12 V dc
Switching Type	Zero Crossing
Control Voltage Range	12 → 24 V dc
Minimum Load Current	0.1 A
Range	G3PE
Number of Poles	3
Contact Configuration	3PST-NO
Output Device	Triac
Relay Type	Solid State Relay
Load Voltage Range	180 → 528V ac
Maximum Turn On Time	1 ms
Series	G3PE-525B-3N 12-24VDC
Dimensions	80 x 120 x 155mm
Minimum Operating Temperature	-30°C
