Detailed Description
Specifications
Features

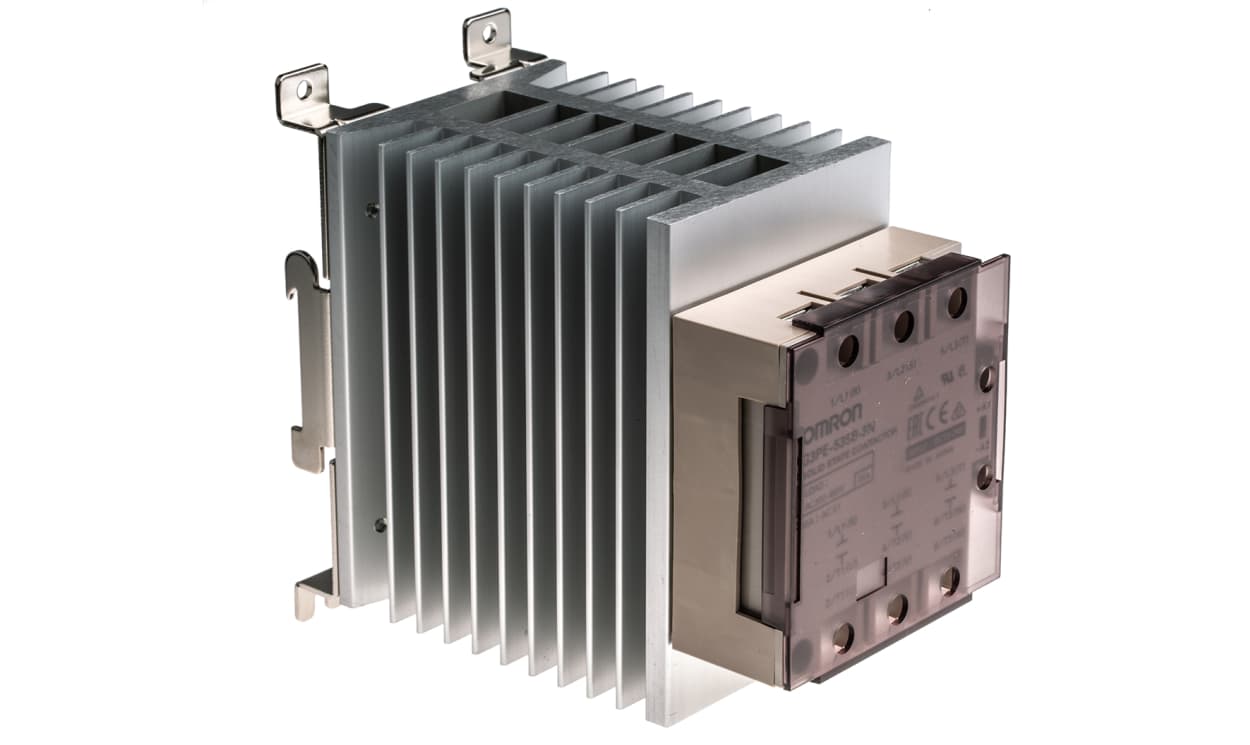

Omron G3PE Three Phase Series Solid State Relay, 35A Maximum Load Current, DIN Rail Mounting - G3PE-535B-3N DC12-24

This solid state relay is designed for high voltage applications in various industrial environments. It addresses challenges in automation and control systems, such as the necessity for swift response times and durability under substantial load conditions. The G3PE series incorporates features that cater to a wide range of operational tasks.

Features & Benefits

• Utilises zero cross switching to minimise electrical noise
• Efficiently manages maximum load currents of 35A
• Compact design for straightforward DIN rail mounting
• Rated for high voltage applications up to 528V AC
• Operates within a broad control voltage range of 9.6 to 30V DC
• Incorporates a phototriac coupler for dependable operation

Applications

• Controls heating elements in industrial furnaces
• Suitable for automation processes that require precise current switching
• Applicable in motor control systems for both forward and reverse operations
• Ideal for thermal regulation in manufacturing
• Employed in various AC electrical distribution systems

What is the typical ambient temperature range for operation?

The unit operates effectively between -30°C and +80°C, providing adaptability in diverse environments.

How does it improve energy efficiency in control systems?

Its zero cross switching feature significantly reduces electrical noise and minimises energy loss during transitions.

Can it be used with both AC and DC control voltages?

Yes, it supports a wide control voltage range, specifically 9.6 to 30V DC control.

What type of mounting options are provided?

It is designed for easy installation on a DIN rail, ensuring convenient and secure fitting.

Is it suitable for use with inductive loads?

While primarily meant for resistive loads, appropriate surge protection measures can enable usage with inductive loads.

Standards

UL508, CSA22.2 No.14, EN 60947-4-3.

Brand	Omron
Maximum Load Current	35 A
Mounting Type	DIN Rail
Maximum Load Voltage	528 V ac
Minimum Load Voltage	180 V ac
Maximum Control Voltage	30 V dc
Minimum Control Voltage	9.6 V dc
Switching Type	Zero Cross
Control Voltage Range	9.6 → 30 V dc
Minimum Load Current	0.5 A
Terminal Type	Screw
Contact Configuration	3P-NO
Output Device	Phototriac Coupler
Maximum Turn On Time	1/2 cycle + 1 ms
Series	G3PE Three Phase
Load Voltage Range	180 → 528V ac
Dimensions	80 x 155 x 140mm
Length	80mm
Depth	155mm
Off State Leakage Current	20 mA

Solid state relay, 3-pole, DIN-track mounting, 35 A, 528 VAC max
