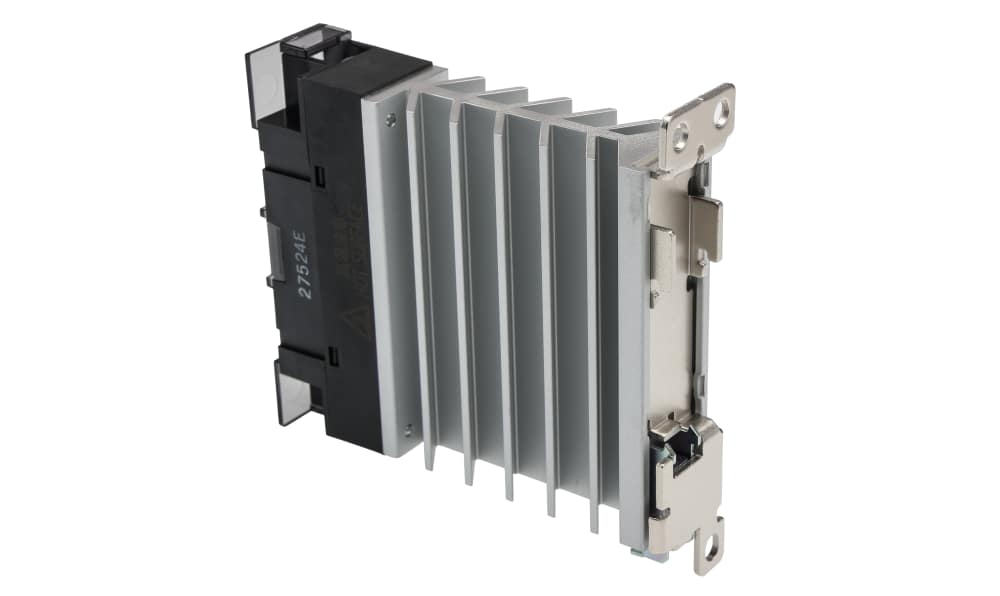

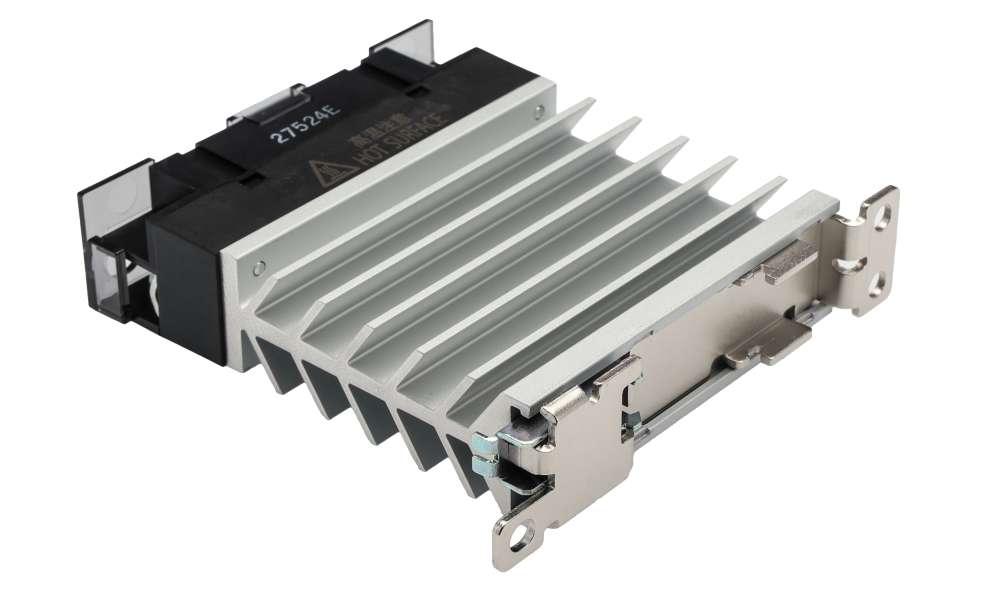

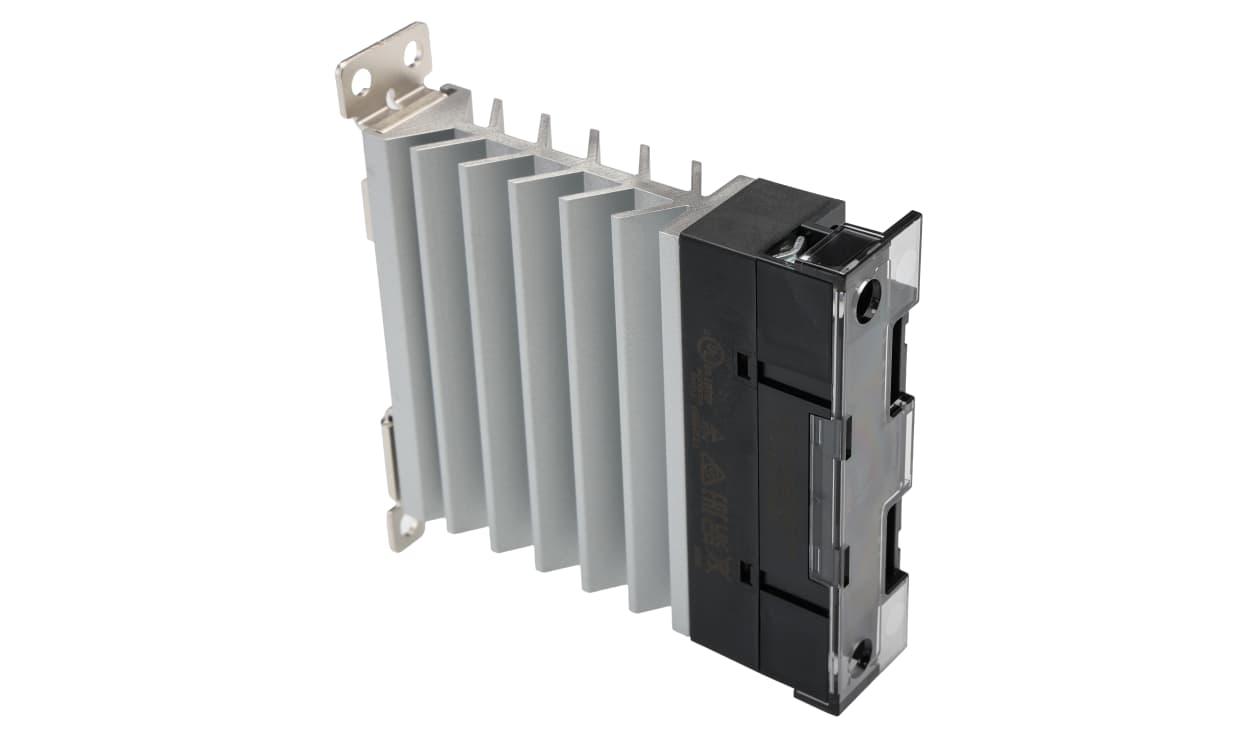

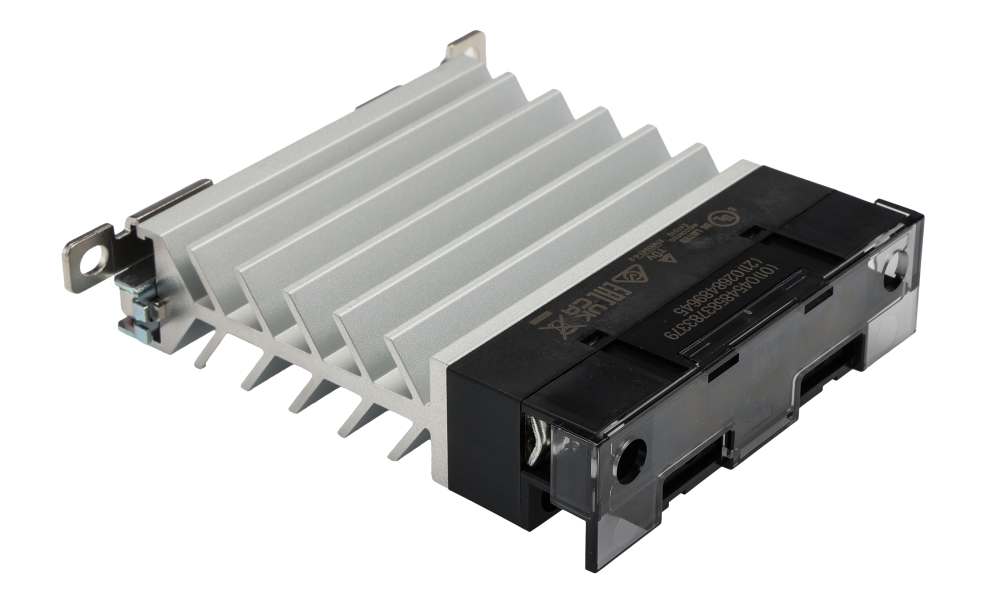

Name: Omron G3PJ-215B-PU DC12-24, G3PJ Series Solid State Relay, 15 A Load, DIN Rail Mount, 264 V ac Load, 24 V dc Control
Brand: OMRON
SKU: G3PJ-215B-PU DC12-24
Availability: OutOfStock

Omron G3PJ-215B-PU DC12-24, G3PJ Series Solid State Relay, 15 A Load, DIN Rail Mount, 264 V ac Load, 24 V dc Control

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron G3PJ-215B-PU DC12-24, G3PJ Series Solid State Relay, 15 A Load, DIN Rail Mount, 264 V ac Load, 24 V dc Control

Part Number : G3PJ-215B-PU DC12-24

Availability: Sold out

Detailed Description
Specifications

Omron G3PJ Series SSR

G3PJ solid state relays are part of the Value Design for Panel range from Omron that takes control panel design and manufacturing to a new level. G3PJ Series single phase solid state relays with heat sinks are suitable for a wide range of applications.

SCCR of 10kA
Surge pass protection
Both push-in and screw terminal input terminals available.
DIN Rail mount
RoHS compliant

Omron G3PJ Series Solid State Relay, 15A Maximum Load Current, 264V Maximum Load Voltage - G3PJ-215B-PU DC12-24

This solid state relay is designed for reliable operation in automation systems. Offering dimensions of 22.5 x 100 x 100mm, it supports a maximum load current of 15A and operates within a wide voltage range of 19 to 264V AC. The device's compact size and robust features make it ideal for a variety of electrical applications.

Features & Benefits

• Maximum load current of 15A ensures efficient performance
• Handles voltages up to 264V AC for flexible application use
• Zero cross switching minimises electrical noise
• Compact DIN rail mounting for straightforward installation
• Features a triac output for enhanced reliability
• Operating temperature range of -30 to +80 °C for versatility

Applications

• Ideal for controlling single-phase motors in industrial settings
• Suitable for use in HVAC systems for efficient operation
• Employed in lighting control systems to manage electrical loads
• Used in automation processes requiring precise relay control

What is the minimum load voltage for this relay?

The relay operates with a minimum load voltage of 19V AC, ensuring it can safely manage low-voltage scenarios while maintaining effective control.

How do I install this device on DIN rail?

Installation requires simply pushing the relay onto the DIN rail until it locks into place, allowing quick and secure setup for your electrical system.

What makes the zero cross switching a beneficial feature?

Zero cross switching helps eliminate voltage spikes during switching operations, reducing wear on connected components and enhancing overall system longevity.

Standards

cULus, TUV, EN 60947-4-3.

Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.

Brand	Omron
Maximum Load Current	15 A
Mounting Type	DIN Rail
Maximum Load Voltage	264 V ac
Minimum Load Voltage	19 V ac
Maximum Control Voltage	24 V dc
Minimum Control Voltage	12 V dc
Switching Type	Zero Cross
Control Voltage Range	12 → 24 V dc
Minimum Load Current	15 A
Number of Poles	1
Terminal Type	Push In, Screw
Contact Configuration	SP
Output Device	Triac
Relay Type	Solid State Relay
Maximum Turn On Time	1/2 cycle + 1 ms
Series	G3PJ
Load Voltage Range	19 → 264V ac
Dimensions	22.5 x 100 x 100mm
Depth	100mm

Omron G3PJ-215B-PU DC12-24, G3PJ Series Solid State Relay, 15 A Load, DIN Rail Mount, 264 V ac Load, 24 V dc Control
