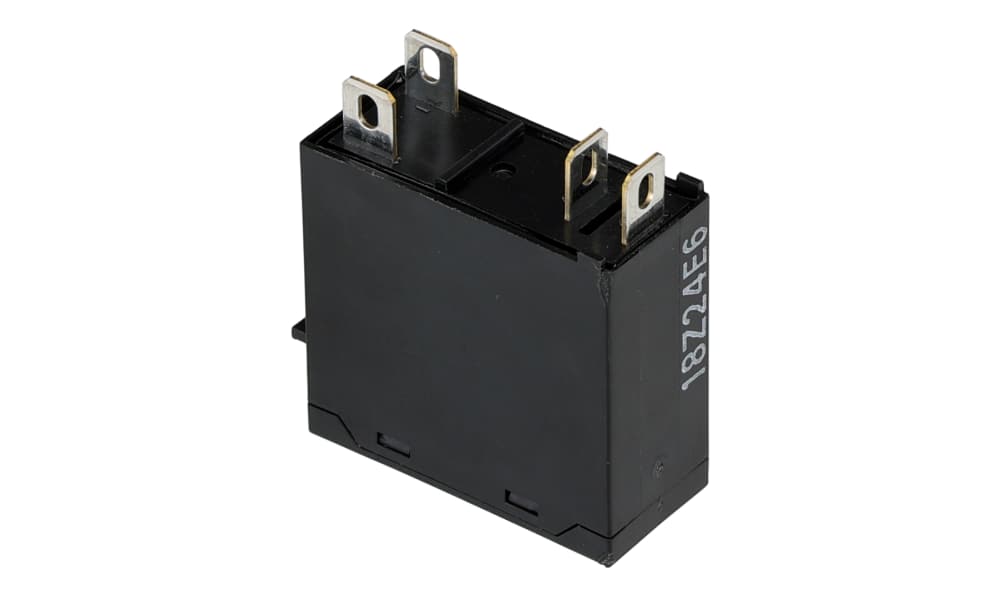

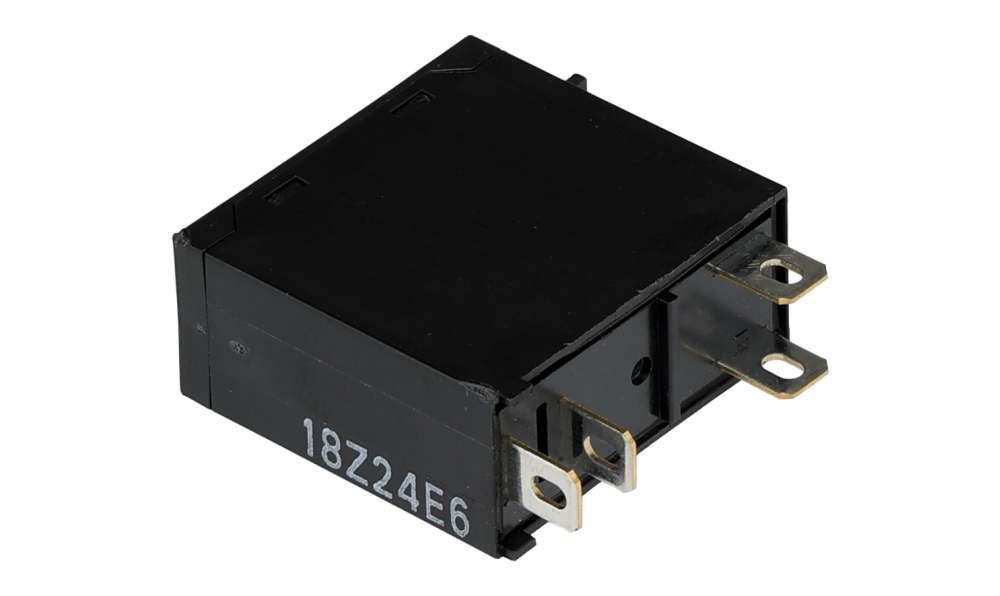

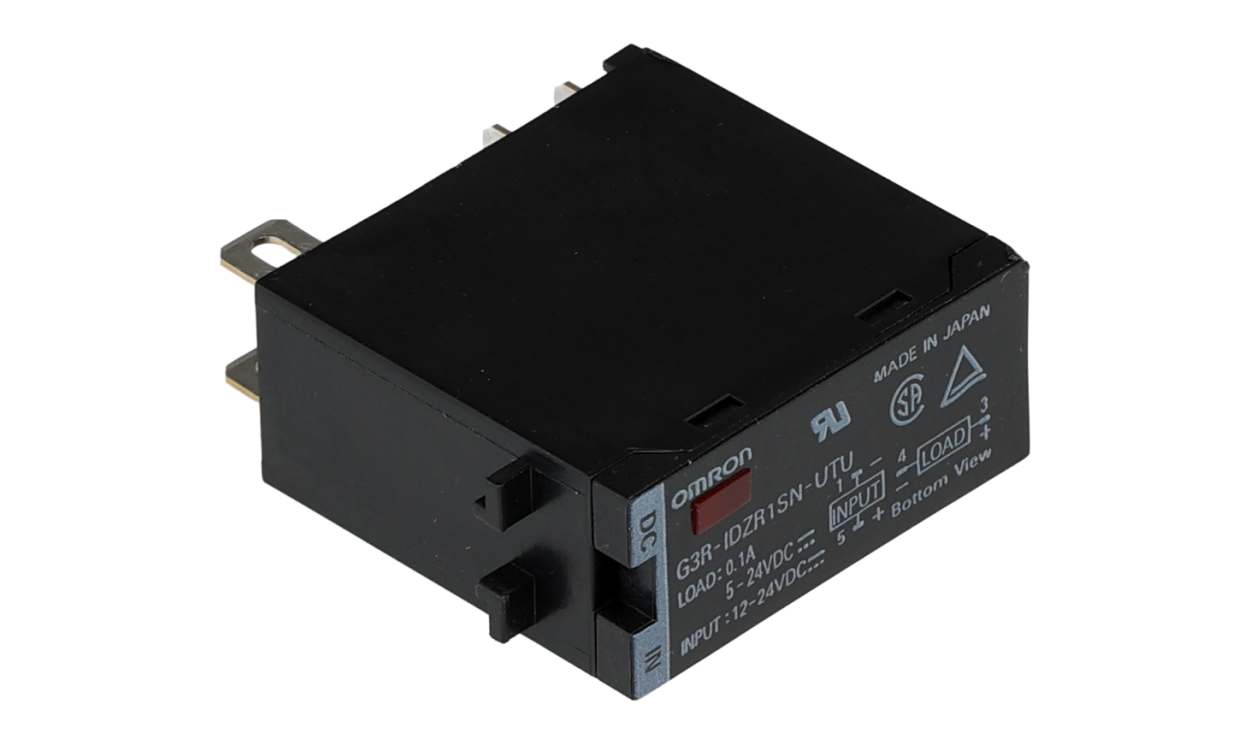

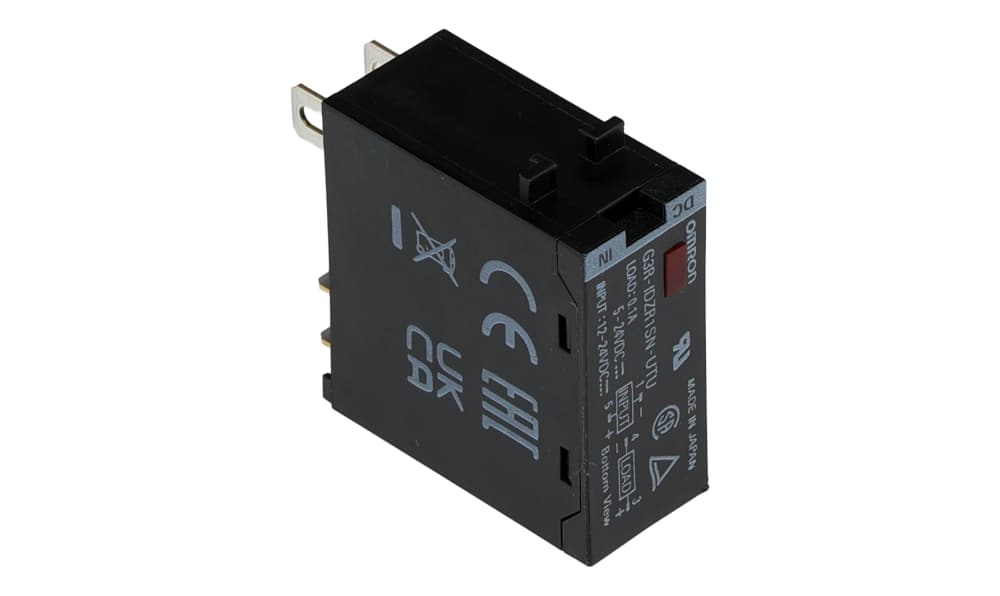

Name: Omron G3R-IDZR1SN-UTU DC12-24, G3R Series Solid State Relay, 100 mA Load, Plug-In Mount, 32 V Load
Brand: OMRON
SKU: G3R-IDZR1SN-UTU DC12-24
Availability: OutOfStock

Omron G3R-IDZR1SN-UTU DC12-24, G3R Series Solid State Relay, 100 mA Load, Plug-In Mount, 32 V Load

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron G3R-IDZR1SN-UTU DC12-24, G3R Series Solid State Relay, 100 mA Load, Plug-In Mount, 32 V Load

Part Number : G3R-IDZR1SN-UTU DC12-24

Availability: Sold out

Detailed Description
Specifications

Omron G3R Series Solid State Relay, 100 mA Maximum Load Current, 32V Maximum Load Voltage - G3R-IDZR1SN-UTU DC12-24

This solid state relay is engineered for efficiency and reliability, making it ideal for automation and control applications. With dimensions of 29 x 13 x 28 mm, it combines practical design with robust performance specifications. This plug-in solid state relay operates within a wide voltage range from 4V to 32V and supports a maximum load current of 100mA, ensuring it can handle a variety of tasks in both industrial and electronic settings.

Features & Benefits

• Plug-in terminal design simplifies installation and maintenance
• Photocoupler insulation method enhances safety during operation
• Fast response time of 0.1ms improves system efficiency
• Built to meet CSA and UL standards for safety compliance

Applications

• Utilised in microload where minimal current is crucial
• Suitable for standard load control in industrial automation systems
• Integrated within OMRON G70A I/O terminals for modular setups
• Effective in safety-critical systems where reliability is paramount
• Adapted for high-speed operations in automation and control environments

How does this solid state relay enhance circuit safety?

The use of a photocoupler insulation method significantly reduces the risk of electric shock and cross-talk between circuits, providing a safer operational environment.

What current and voltage specifications should I consider for my application?

The relay operates effectively between 4V to 32V and can handle a maximum load current of 100mA, making it suitable for a variety of low voltage applications.

What are the benefits of a plug-in terminal design?

The design allows for straightforward installation and replacement, minimising downtime and simplifying maintenance tasks due to the easy connectivity.

Can this relay operate in extreme environmental conditions?

Yes, it is designed to function effectively between -30°C to +80°C, ensuring reliable performance in diverse conditions.

Brand	Omron
Maximum Load Current	100 mA
Mounting Type	Plug-In Mount
Maximum Load Voltage	32 V
Minimum Load Voltage	4 V
Minimum Load Current	0.1 mA
Range	G3R-I/O
Series	G3R
