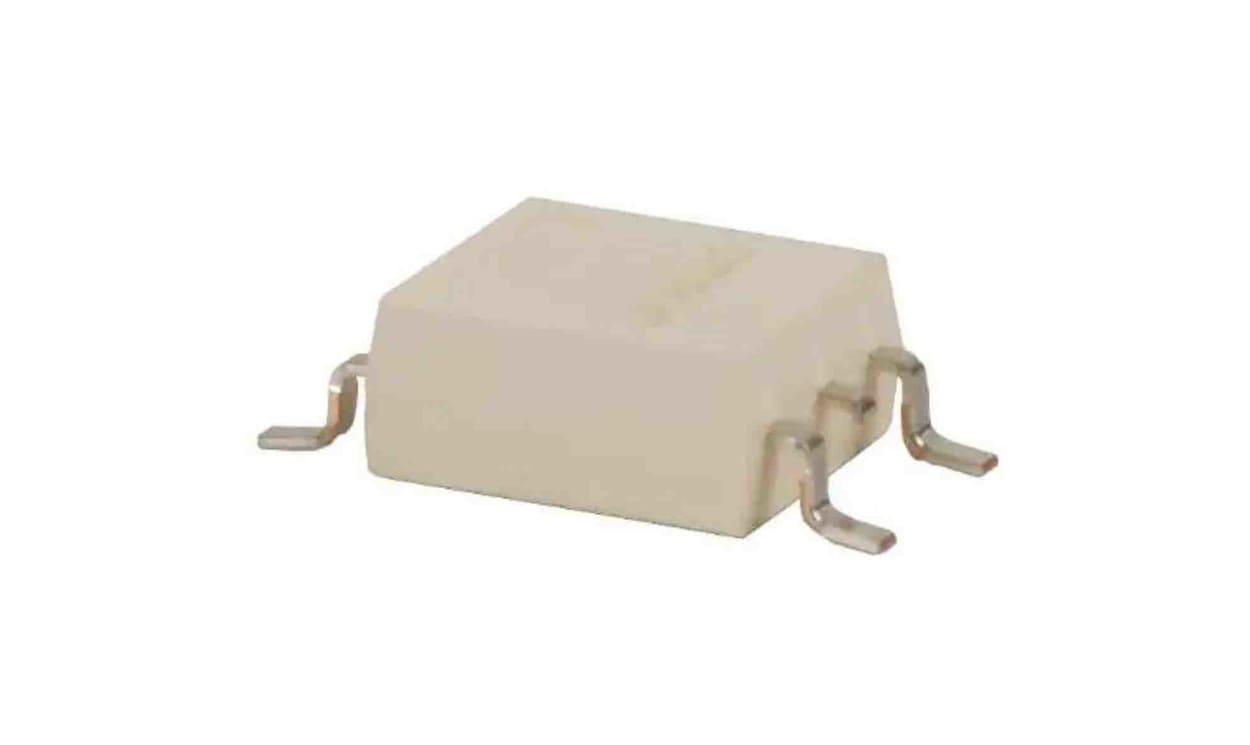

Name: Omron G3VM-61GR2, G3VM Series Solid State Relay, 1.7 A Load, Surface Mount, 60 V Load
Brand: OMRON
SKU: G3VM-61GR2
Availability: OutOfStock

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron G3VM-61GR2, G3VM Series Solid State Relay, 1.7 A Load, Surface Mount, 60 V Load

Part Number : G3VM-61GR2

Availability: Sold out

Detailed Description
Specifications

The Omron Electronic Components MOS FET Relays in SOP 4 pin packages that achieve the low ON resistance and high switching capacity of a mechanical relay. This relay can be used in Communication equipment, Test and measurement equipment, Security equipmen

-40 to +85°C ambient operating temperature
-0.3mA/°C LED forward current reduction rate
1500Vrms dielectric strength between Input and Output

Brand	Omron
Maximum Load Current	1.7 A
Mounting Type	Surface Mount
Maximum Load Voltage	60 V
Minimum Load Voltage	1 V
Range	G3VM
Contact Configuration	SPST
Output Device	MOSFET
Series	G3VM
Load Voltage Range	60V
Dimensions	4.4 x 3.9 x 2.1mm
Minimum Operating Temperature	-40°C
Capacitance	0.8pF
Height	3.7mm
Standards Met	UL
Depth	3.9mm
Operating Temperature Range	-40 → +85°C
Maximum Operating Temperature	+85°C
Length	9.7mm
