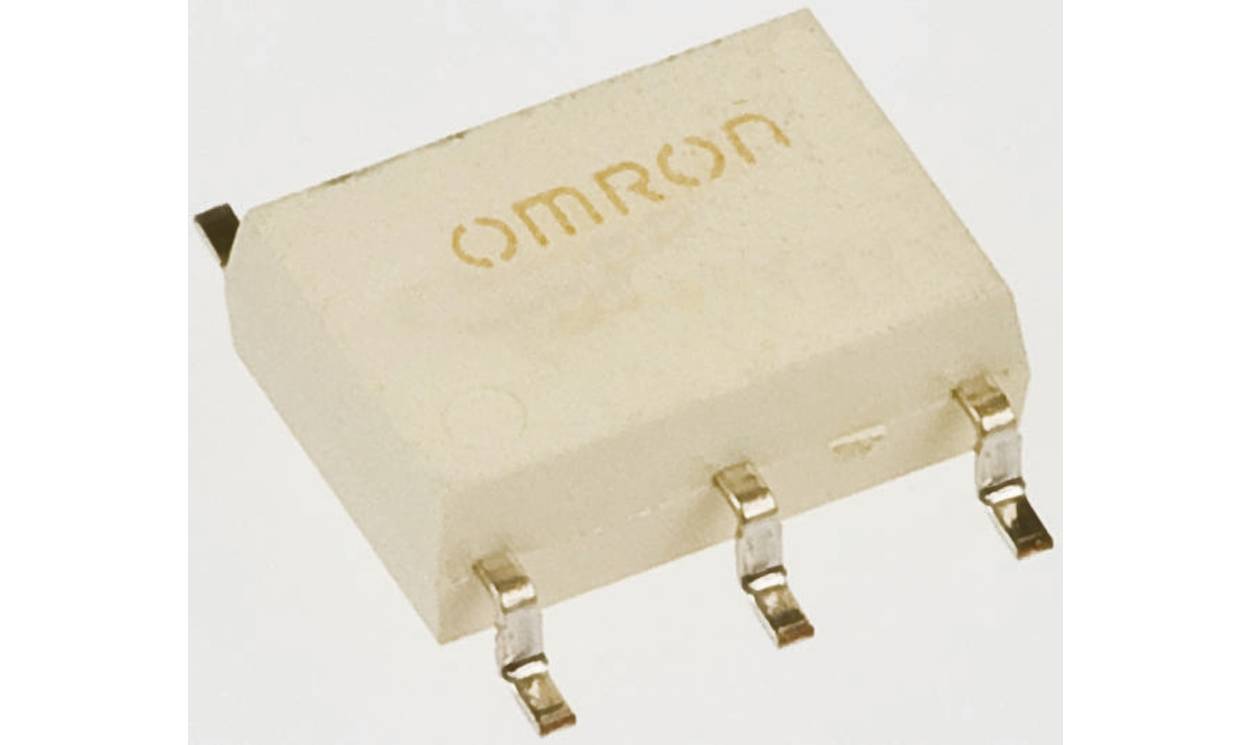

Name: Omron G3VM-61H1, G3VM Series Solid State Relay, 0.4 A Load, Surface Mount, 60 V Load, 1.3 V Control
Brand: OMRON
SKU: G3VM-61H1
Availability: OutOfStock

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron G3VM-61H1, G3VM Series Solid State Relay, 0.4 A Load, Surface Mount, 60 V Load, 1.3 V Control

Part Number : G3VM-61H1

Availability: Sold out

Detailed Description
Specifications

G3VM MOSFET SSR

Solid-state relay with MOSFET output and photo-LED input
Combines advantages of mechanical and solid state technology
Low on-resistance and output capacitance
Long life
Wide range of models available
Ideal for telecom solutions, including line seizing, switching, hook switching, line transformer control and other phone functions

G3VM-61H1 MOS FET General Purpose Series SSR – Solid State Relay.

The G3VM-61H1 MOS FET relay is part of the upgraded G3VM-S1 series offering a wealth of benefits required from maintenance free relays. SPST-NO (normally open), surface mounted package relay with 6-pins. This series relay is designed for switching minute and analogue signals.

Features and Benefits G3VM-61H1 SSR – Solid Sate Relay.

• MOS FET Solid state relay.
• Surface mounted relay terminals.
• Contact form SPST-NO 1a (normally open).
• SOP6 (small outline).
• 6 Relay terminals.
• Load voltage 60 V.
• Load current 400 mA max.
• Maximum resistance with output ON 1 Ω.
• Current leakage when relay is open 1000 nA max.
• Capacitance between terminals 130 pF.
• SSR -Turn ON time 2 ms max.
• SSR -Turn OFF time 0.5 ms max.
• Dielectric strength between I/O 1500 Vrms.
• Switches analogue signals.
• Single pole, single throw.
• RoHS Compliant.

Additional Features G3VM-61H1 General Purpose SSR – Solid State Relay.

• Long operational life.
• Small leakage current.
• SSR has excellent shock resistance.
• High insulation.
• Silent operation.
• High-speed switching.
• Control the micro analogue signal.
• Photo-LED input.
• Status output.
• Compact
• Operating temperature, ambient -20°C to +65°C, no icing or condensation.
• Soldering temperature 260°C.

Other Application Examples.

• Test and measurement equipment.
• Communication equipment.
• Semi-conductor test equipment.
• Broadband systems.
• Data loggers.
• Amusement systems.

Brand	Omron
Maximum Load Current	0.4 A
Mounting Type	Surface Mount
Maximum Load Voltage	60 V
Maximum Control Voltage	1.3 V
Minimum Load Current	400 mA (Connection A), 400 mA (Connection B), 800 mA (Connection C)
Contact Configuration	SPST
Terminal Type	PCB Pin
Output Device	MOSFET
Package Style	SOP6
Load Voltage Range	0 → 60V ac
Series	G3VM
Dimensions	6.3 x 4.4 x 1.9mm
Height	1.9mm
Length	6.3mm
Operating Temperature Range	-40 → +85°C
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	+85°C
Depth	4.4mm
