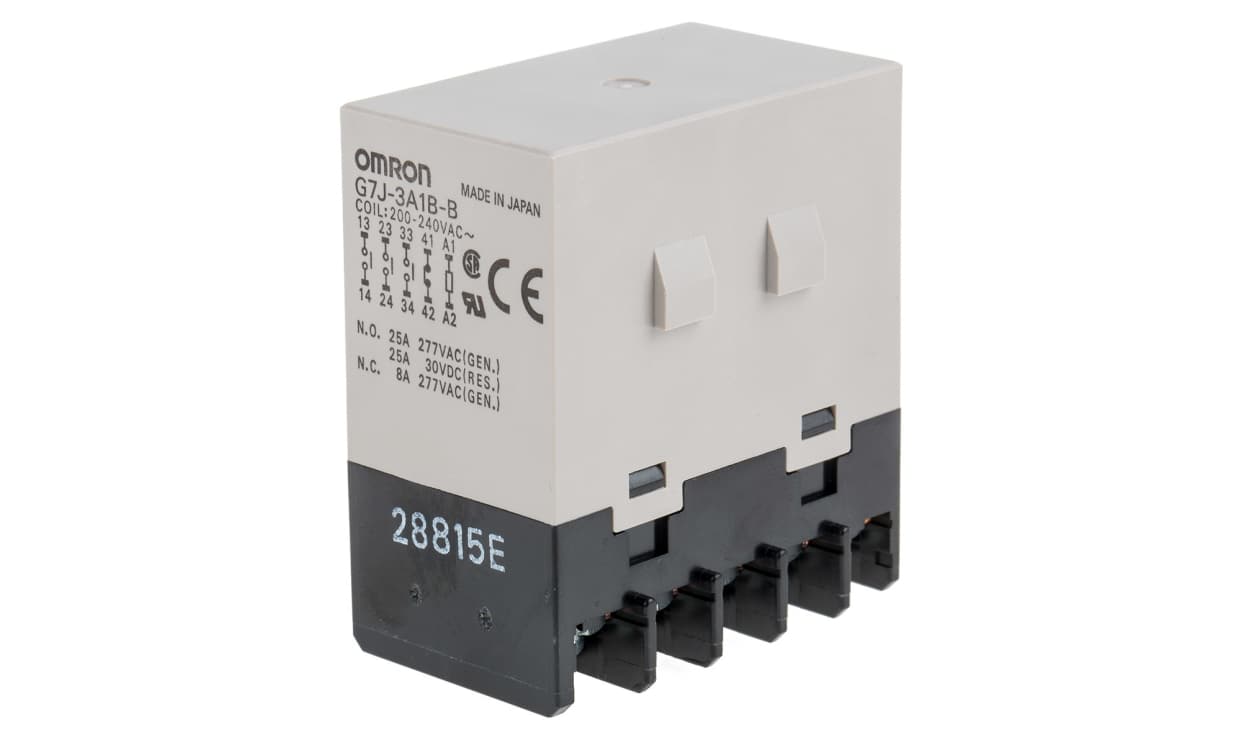

OMRON G7J-3A1B-B 200/240VAC | Panel Mount Power Relay | 240 V AC Coil, 3PDT, 25 A

Name: OMRON G7J-3A1B-B 200/240VAC | Panel Mount Power Relay | 240 V AC Coil, 3PDT, 25 A
Brand: OMRON
SKU: G7J-3A1B-B 200/240VAC
Availability: InStock

Part Number : G7J-3A1B-B 200/240VAC

Built around a 240 V AC coil, the OMRON G7J-3A1B-B 200/240VAC provides 3PDT switching with a 25 A current rating. As a non-latching G7J-series relay, the G7J-3A1B-B 200/240VAC uses panel mounting and screw terminals.

Operating temperature: −25 °C to +60 °C
Contact material: silver
Dimensions: length 51.5 mm, depth 34.5 mm, height 64 mm
Application category: general purpose
Maximum switching power: 5.5 kVA (AC) / 750 W (DC)

Availability: low stock

Detailed Description
Specifications
Downloads

PCB Mounting & Screw Terminal - Power Relays - G7J Series

High capacity, high dielectric strength, multi-pole relays ideal for 3-phase motor control applications and resistive loads
No contact chattering for momentary voltage drops up to 50% of rated voltage
Withstands more than 4kV between contacts that are of different polarity and between the coil and contacts
Flame-resistant material (UL94V-0)
Push-to-test button lets user check contact operation
PCB mounted, screw terminal or quick connect types available

Approvals

UL; CSA

Brand	Omron
Coil Voltage	240V ac
Contact Configuration	3PDT
Mounting Type	Panel Mount
Switching Current	25A
Latching	No
Series	G7J
Terminal Type	Screw
Length	51.5mm
Depth	34.5mm
Minimum Operating Temperature	-25°C
Contact Material	Silver
Height	64mm
Maximum Operating Temperature	+60°C
Maximum Switching Power DC	750 W
Maximum Switching Power AC	5.5 kVA
Application	General Purpose
