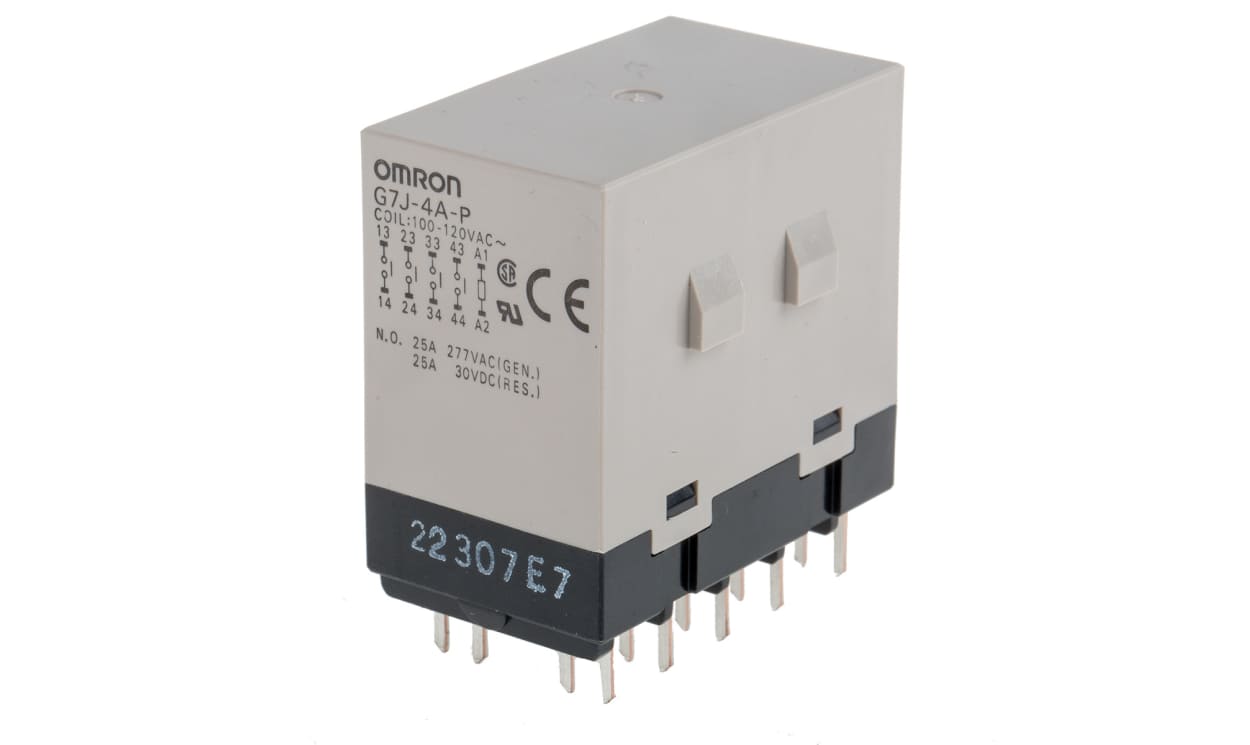

OMRON G7J-4A-P AC100/120 | PCB Mount Power Relay | 120 V AC Coil, 4PST-NO, 25 A

Name: OMRON G7J-4A-P AC100/120 | PCB Mount Power Relay | 120 V AC Coil, 4PST-NO, 25 A
Brand: OMRON
SKU: G7J-4A-P AC100/120
Availability: InStock

Part Number : G7J-4A-P AC100/120

Rated for 25 A switching current, the OMRON G7J-4A-P AC100/120 is a 4PST-NO power relay driven by a 120 V AC coil. The G7J-4A-P AC100/120 belongs to the G7J series (non-latching) and comes with PCB mounting and through-hole terminals.

Dimensions: length 51.5 mm, depth 33.5 mm, height 51 mm
Application category: general purpose
Maximum switching power: 5.5 kVA (AC) / 750 W (DC)
Operating temperature: −25 °C to +60 °C
Contact material: silver

Availability: low stock

Detailed Description
Specifications
Downloads

PCB Mounting & Screw Terminal - Power Relays - G7J Series

High capacity, high dielectric strength, multi-pole relays ideal for 3-phase motor control applications and resistive loads
No contact chattering for momentary voltage drops up to 50% of rated voltage
Withstands more than 4kV between contacts that are of different polarity and between the coil and contacts
Flame-resistant material (UL94V-0)
Push-to-test button lets user check contact operation
PCB mounted, screw terminal or quick connect types available

Approvals

UL; CSA

Brand	Omron
Coil Voltage	120V ac
Contact Configuration	4PST-NO
Mounting Type	PCB Mount
Switching Current	25A
Number of Poles	4
Latching	No
Series	G7J
Terminal Type	Through Hole
Length	51.5mm
Maximum Operating Temperature	+60°C
Depth	33.5mm
Minimum Operating Temperature	-25°C
Contact Material	Silver
Height	51mm
Maximum Switching Power DC	750 W
Maximum Switching Power AC	5.5 kVA
Application	General Purpose
