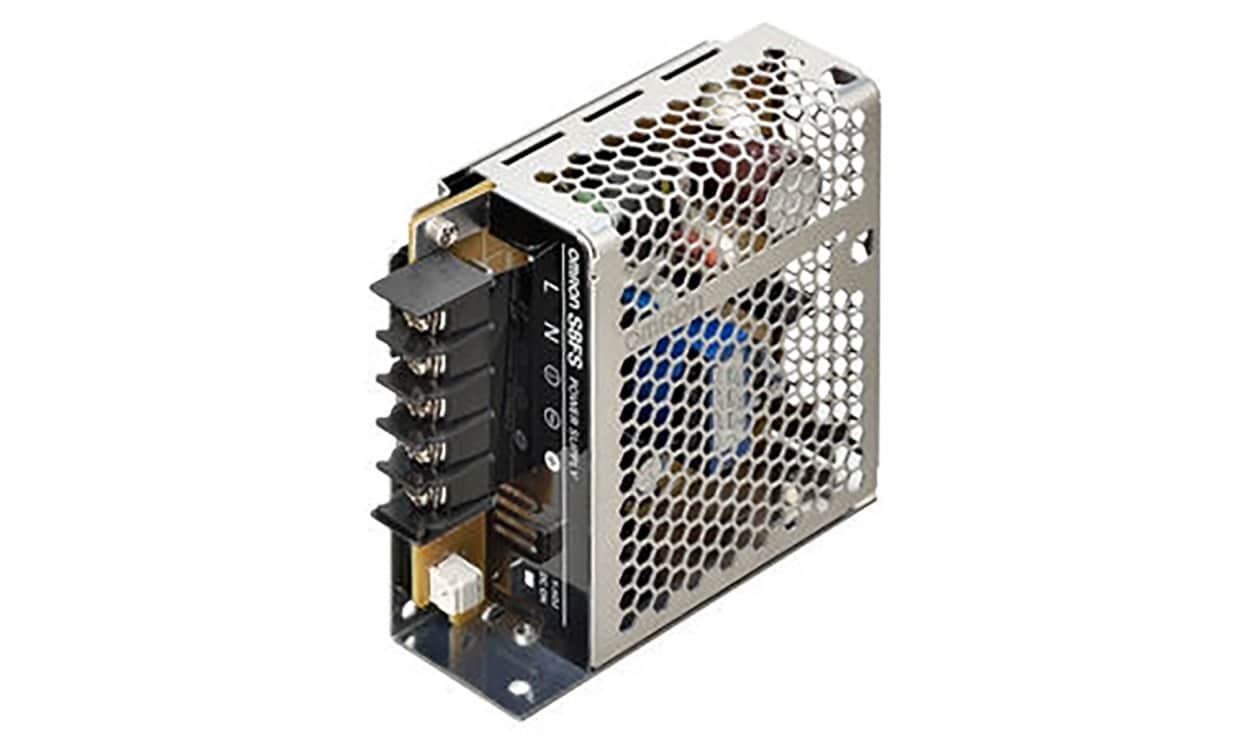

Name: Omron S8FS-C01505J, S8FS-C Switched Mode DIN Rail Power Supply, 85 → 264 V ac / 120 → 370V dc ac, dc Input, 5V dc dc
Brand: OMRON
SKU: S8FS-C01505J
Availability: OutOfStock

Omron S8FS-C01505J, S8FS-C Switched Mode DIN Rail Power Supply, 85 → 264 V ac / 120 → 370V dc ac, dc Input, 5V dc dc

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron S8FS-C01505J, S8FS-C Switched Mode DIN Rail Power Supply, 85 → 264 V ac / 120 → 370V dc ac, dc Input, 5V dc dc

Part Number : S8FS-C01505J

Availability: Sold out

Detailed Description
Specifications
Downloads

Switch Mode Power Supply S8FS-C Series

Omron S8FS-C series of switch mode power supplies are a reliable basic power supply with enhanced abnormal over-voltage resistance plus lightening surge protection providing a stable operation. A quality electrolytic capacitor has a longer life 4 times that of previous models all adding to the cost effectiveness of this series of power supplies. The series are quick and easy to DIN rail mount and cover a range of input voltages of 100 V AC to 240 Vac and 200 V ac to 240 Vac.

Features and Benefits.

• Basic switch mode power supply
• Reliable
• DIN Rail mountable, quick and easy (brackets not included)
• Stable operation
• Abnormal over-voltage resistance
• Lightening surge protection
• Quality electrolytic capacitor, longer life
• Cost effective
• Green output indicator
• Overvoltage and overload protection
• Forward and upward facing terminal blocks
• Natural air cooling
• Harmonic current emissions – EN 61000-3-2
• CE, UL approved

S8FS-C01505J
15 W, 100 V ac to 240 V ac input voltage, 5 V dc output, 3 A output current, forward facing terminal block. Efficiency 80%.

S8FS-C01524J
15 W, 100 V ac to 240 V ac input voltage, 24 V dc output, 0.7 A output current, forward facing terminal block. Efficiency 87%.

S8FS-C05024
50 W, 100 V ac to 240 V ac input voltage, 24 V dc output, 2.2 A output current, upward facing terminal block. Efficiency 86%.

S8FS-C10024
100 W, 100 V ac to 120 V ac / 200 V ac to 240 V ac, 24 V dc output, 4.5 A output current, upward facing terminal block. Efficiency 87%.

Safety and Storage.

Do not use an inverter output for the power supply.

Vibration resistance 10 Hz to 55 Hz. 0.375 mm single amplitude in each 3 directions for 2 hours.
Shock resistance 150 m/s**2 in each 6 directions 3 times.
Storage temperature -40°C to 85°C. No condensation or icing.
Operating temperature 20°C to 90°C. Storage humidity 10% to 95%.

Power supply life expectancy 10 years.

Easy mounting of the power supplies is possible with the DIN Rail mounting brackets which are available separately.

Mounting bracket S82Y-FSC015DIN fits power rating 15 W
Mounting bracket S82Y-FSC050DIN fits power rating 35 W and 50 W
Mounting bracket S82Y-FSC150DIN fits power rating 75 W, 100 W and 150 W

Brand	Omron
Series	S8FS-C
Type	Switched Mode
Number of Outputs	1
AC or DC Input Voltage	ac, dc
Input Voltage	85 → 264 V ac / 120 → 370V dc
AC or DC Output Voltage	dc
Output Voltage	5V dc
Output Current	3A
Dimensions	51 x 28 x 92mm
Height	28mm
Depth	92mm
Width	51mm
Special Features	High Reliability, Long Life, Wide Input Range, Full Lineup
Mounting Type	DIN Rail Mount
Efficiency	82%
Output Voltage Adjustment Range	±10%
Standards Met	CCC, CE, CSA, cULus Recognized
Maximum Temperature	+60°C
Minimum Temperature	-20°C
