Omron S8FS-C10024, S8FS DIN Rail Power Supply, 100 → 240V ac ac, dc Input, 24V dc dc Output, 4.5A Output, 100W

Name: Omron S8FS-C10024, S8FS DIN Rail Power Supply, 100 → 240V ac ac, dc Input, 24V dc dc Output, 4.5A Output, 100W
Brand: OMRON
SKU: S8FS-C10024
Availability: OutOfStock

Part Number : S8FS-C10024

Power supply, 100 W, 100-240 VAC input, 24 VDC, 4.5 A output, Upper terminal

Availability: Sold out

Detailed Description
Specifications
Features
Downloads

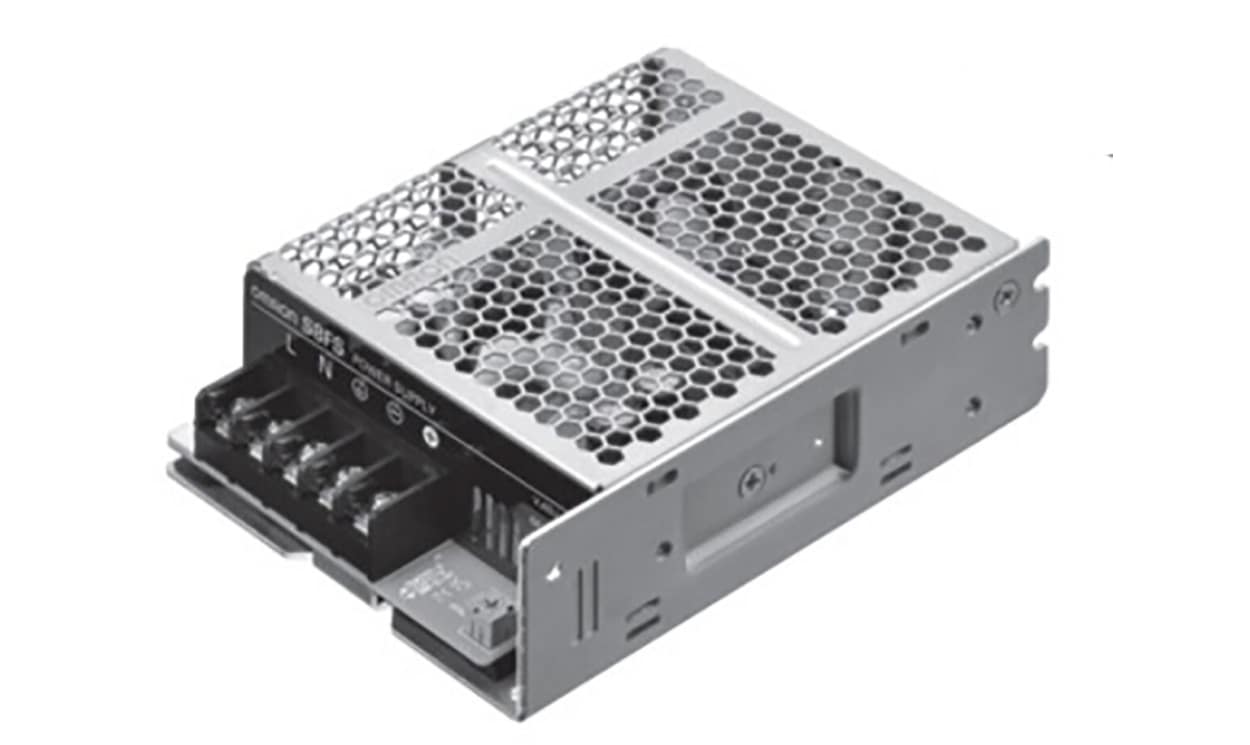

Omron S8FS Series Power Supply, 4.5A Output Current, 100W Power Rating - S8FS-C10024

This Omron power supply efficiently converts AC to DC power and supports a wide AC input range of 100 to 240V, making it adaptable for various applications. With compact dimensions of 38x97x159mm, it fits easily into different setups while providing a consistent 24V DC output.

Features & Benefits

• Operates with an efficiency rating of 87%
• Designed for direct mount installation
• Adjustable output voltage range for added flexibility
• High power capacity of 100W for diverse applications
• Long lifespan with a mean time between failures (MTBF) of 135,000 hours

Applications

• Used in automation and control systems
• Serves as a power source for industrial equipment
• Ideal for powering electronic devices
• Suitable for installations in tight spaces

Will it provide stable output for sensitive devices?

Yes, it maintains a stable 24V DC output for sensitive applications.

Is it suitable for extreme environmental conditions?

Yes, it operates effectively in temperatures from -20 to +60°C.

Brand	Omron
Series	S8FS
AC Input Voltage	100 → 240V ac
Type	Power Supply
Electrical Phase	1
AC or DC Input Voltage	ac, dc
Number of Outputs	1
Input Voltage	100 → 240V ac
AC or DC Output Voltage	dc
Output Voltage	24V dc
Output Current	4.5A
Dimensions	38 x 97 x 159mm
Width	97mm
Depth	159mm
Height	38mm
Ripple And Noise	120mV Pk-Pk
Maximum Temperature	+60°C
Standards Met	CCC, CE, CSA, cULus Recognized
MTBF	135000h
Special Features	High Reliability, Long Life, Wide Input Range, Full Lineup

Power supply, 100 W, 100-240 VAC input, 24 VDC, 4.5 A output, Upper terminal

Omron S8FS-C10024, S8FS DIN Rail Power Supply, 100 → 240V ac ac, dc Input, 24V dc dc Output, 4.5A Output, 100W
