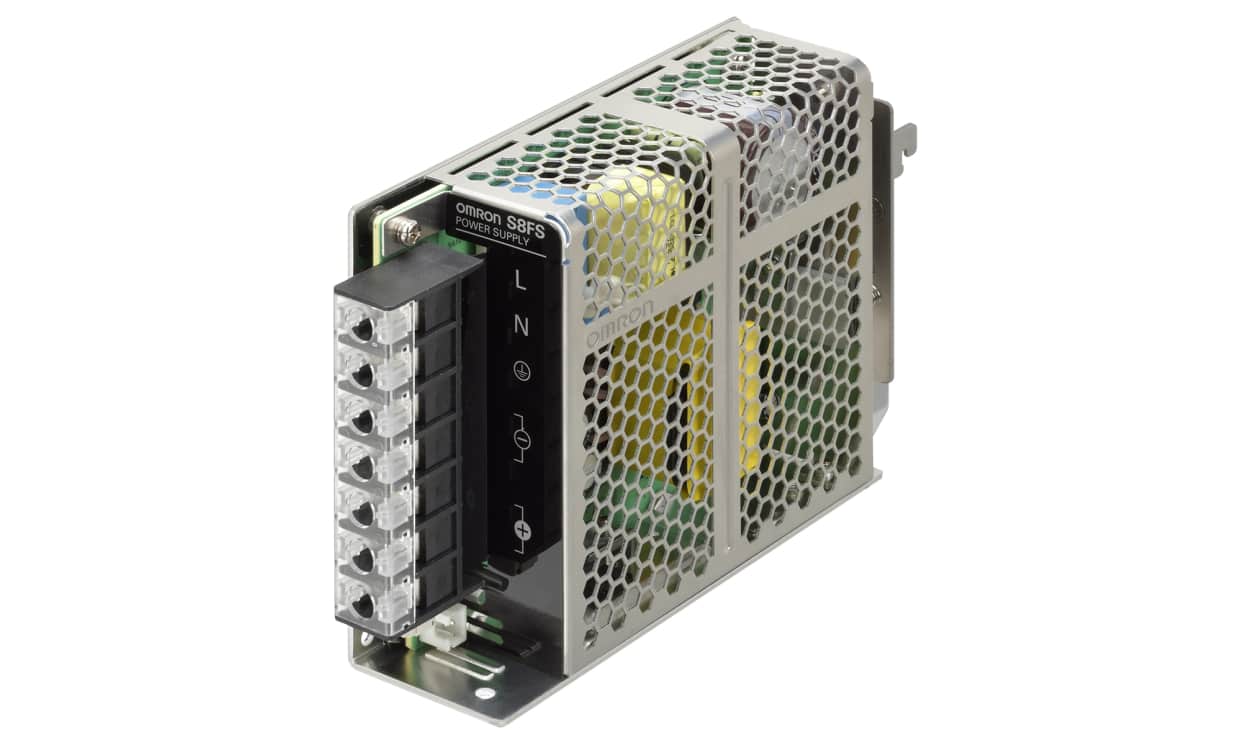

Name: Omron S8FS-G10005CD, S8FS-G Switched Mode Power Supply, 100 → 240V ac ac Input, 5V dc dc Output, 16A Output, 100W
Brand: OMRON
SKU: S8FS-G10005CD
Availability: OutOfStock

Omron S8FS-G10005CD, S8FS-G Switched Mode Power Supply, 100 → 240V ac ac Input, 5V dc dc Output, 16A Output, 100W

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron S8FS-G10005CD, S8FS-G Switched Mode Power Supply, 100 → 240V ac ac Input, 5V dc dc Output, 16A Output, 100W

Part Number : S8FS-G10005CD

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron S8FS-G Series Power Supply, 5V DC Output Voltage, 100W Power Rating - S8FS-G10005CD

This power supply efficiently transforms AC input voltage to DC output, making it suitable for industrial applications. It meets the demand for dependable power distribution in automation and electronic systems, facilitating smooth operation across various environments. Its compact design and adherence to industry standards make it a fitting choice for professionals in the electrical and mechanical fields.

Features & Benefits

• Operates with an AC input of 100 to 240V for flexibility
• Achieves up to 81% efficiency, helping to reduce energy use
• Offers an adjustable output voltage range of -10 to +15% for adaptability
• Features load regulation of 1% for consistent output quality

Applications

• Suitable for HVAC and machine control
• Commonly used in electronic testing and measurement equipment
• Employed in telecommunications equipment and network devices

What is the temperature range for optimal operation?

The unit operates best within a temperature range of -20°C to +70°C, making it adaptable to various settings.

How do I install this power supply?

It is designed for DIN rail mounting, allowing for straightforward installation in appropriate enclosures.

What output current can I expect?

It provides a maximum output current of 16A, suitable for various applications requiring stable power.

Standards

EN 61000-3-2
UL 508 (Listing, excluding models with connector option or remote control option)
UL 60950-1, UL 62368-1 (Recognition, OVCII 3,000 m, Pol2)
CSA C22.2 No.107.1 (excluding models with connector option or remote control option)
CSA C22.2 No.60950-1, No.62368-1 (excluding models with connector option remote control option)
EN 50178 (OVCIII 2,000 m, OVCII 2,000 m and 3,000 m, Pol2)
EN/IEC 60950-1, EN/IEC 62368-1 (OVCII 3,000 m, Pol2)
Conforms to EN/IEC 61558-2-16
Conforms to PELV (EN/IEC 60204-1)
SEMI conforms to F47-0706 (200 VAC input)

Brand	Omron
Series	S8FS-G
Type	Switched Mode
AC Input Voltage	100 → 240V ac
Electrical Phase	1
Number of Outputs	1
AC or DC Input Voltage	ac
Input Voltage	100 → 240V ac
AC or DC Output Voltage	dc
Output Voltage	5V dc
Output Current	16A
Dimensions	167 x 97 x 39.2mm
Depth	97mm
Height	39mm
Width	167mm
Standards Met	CE, CSA C22.2 No. 60950-1, CSA C22.2 No.107.1, cULus Recognised, EN 50178, EN 55011 Class B, EN 60950-1, EN 61000-3-2, EN 61204-3, EN 61204-3 Class B, EN/IEC 61558-2-16, TUV, UL, UL 508, UL 60950-1
Output Voltage Adjustment Range	-10 → +15%
Ripple And Noise	70mV Pk-Pk
MTBF	135000h
Load Regulation	1%
