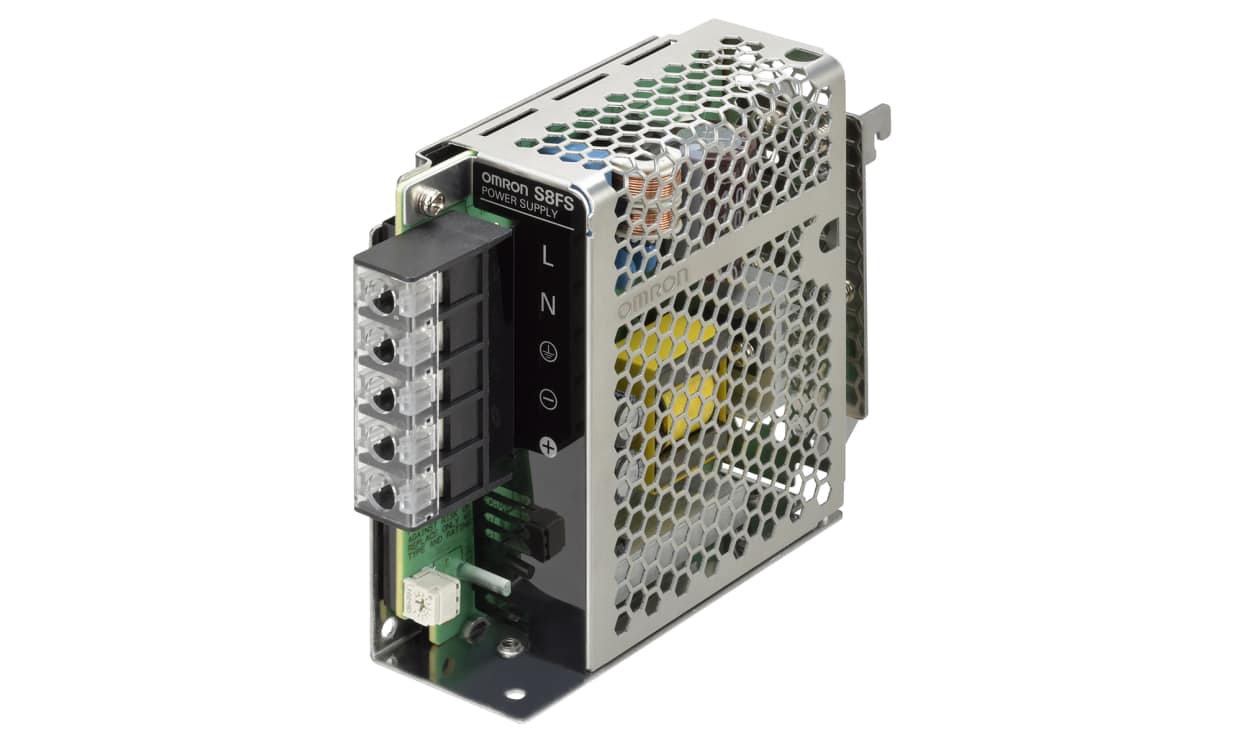

Name: Omron S8FS-G10012CD, S8FS-G Switched Mode DIN Rail Power Supply, 100 → 240V ac ac Input, 12V dc dc Output, 8.5A Output, 100W
Brand: OMRON
SKU: S8FS-G10012CD
Availability: OutOfStock

Omron S8FS-G10012CD, S8FS-G Switched Mode DIN Rail Power Supply, 100 → 240V ac ac Input, 12V dc dc Output, 8.5A Output, 100W

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron S8FS-G10012CD, S8FS-G Switched Mode DIN Rail Power Supply, 100 → 240V ac ac Input, 12V dc dc Output, 8.5A Output, 100W

Part Number : S8FS-G10012CD

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron S8FS-G Series DIN Rail Power Supply, 12V DC Output Voltage, 8.5A Output Current - S8FS-G10012CD

This DIN rail power supply provides a reliable AC to DC conversion for a variety of industrial applications. Featuring a compact design, it measures 167 x 97 x 39.2mm and can handle input voltages from 100 to 240VAC. With an output of 12V DC at 8.5A, this switched mode power supply is suitable for automation and electrical systems.

Features & Benefits

• High efficiency power supply achieving 86% energy efficiency
• Output voltage adjustment range offers flexibility from -10% to +15%
• Designed for ambient temperatures up to 70°C for reliability
• CE certified power supply meets global safety standards
• Built-in overload protection safeguards against excessive current
• Compact DIN rail mounted power supply optimises space utilisation

Applications

• Used for powering control systems in automation
• Ideal for use in harsh environments, including elevated temperatures
• Perfect for requiring a reliable 12V DC power source
• Compatible with devices that require a switched mode power supply
• Suitable for systems operating under rigorous industrial conditions

What is the maximum load this power supply can handle?

The maximum output current is 8.5A at 12V DC, equating to a power rating of 100W.

How does the output voltage adjustment feature work, and what is its benefit?

The output voltage can be adjusted between -10% to +15% of 12V DC, allowing for compatibility with a variety of connected devices that might require slightly different voltage levels.

Can this product be used in parallel with other units?

No, parallel operation is not supported

however, the product can function in backup scenarios with appropriate external diodes to ensure seamless power supply.

What safety certifications does this power supply hold?

It is CE certified and complies with multiple safety standards, including UL and CSA, ensuring it meets rigorous industrial requirements for quality and safety.

What measures does it have against overheating?

It features internal overload and overtemperature protection, automatically shutting off the output if operating conditions exceed specified limits.

Standards

EN 61000-3-2
UL 508 (Listing, excluding models with connector option or remote control option)
UL 60950-1, UL 62368-1 (Recognition, OVCII 3,000 m, Pol2)
CSA C22.2 No.107.1 (excluding models with connector option or remote control option)
CSA C22.2 No.60950-1, No.62368-1 (excluding models with connector option remote control option)
EN 50178 (OVCIII 2,000 m, OVCII 2,000 m and 3,000 m, Pol2)
EN/IEC 60950-1, EN/IEC 62368-1 (OVCII 3,000 m, Pol2)
Conforms to EN/IEC 61558-2-16
Conforms to PELV (EN/IEC 60204-1)
SEMI conforms to F47-0706 (200 VAC input)

Brand	Omron
Series	S8FS-G
Type	Switched Mode
Electrical Phase	1
Number of Outputs	1
AC or DC Input Voltage	ac
Input Voltage	100 → 240V ac
AC or DC Output Voltage	dc
Output Voltage	12V dc
Output Current	8.5A
Dimensions	167 x 97 x 39.2mm
Height	39mm
Depth	97mm
Width	167mm
Output Voltage Adjustment Range	-10 → +15%
Ripple And Noise	90mV Pk-Pk
MTBF	135000h
Load Regulation	1%
Efficiency	86%
Model	S8FS-G
