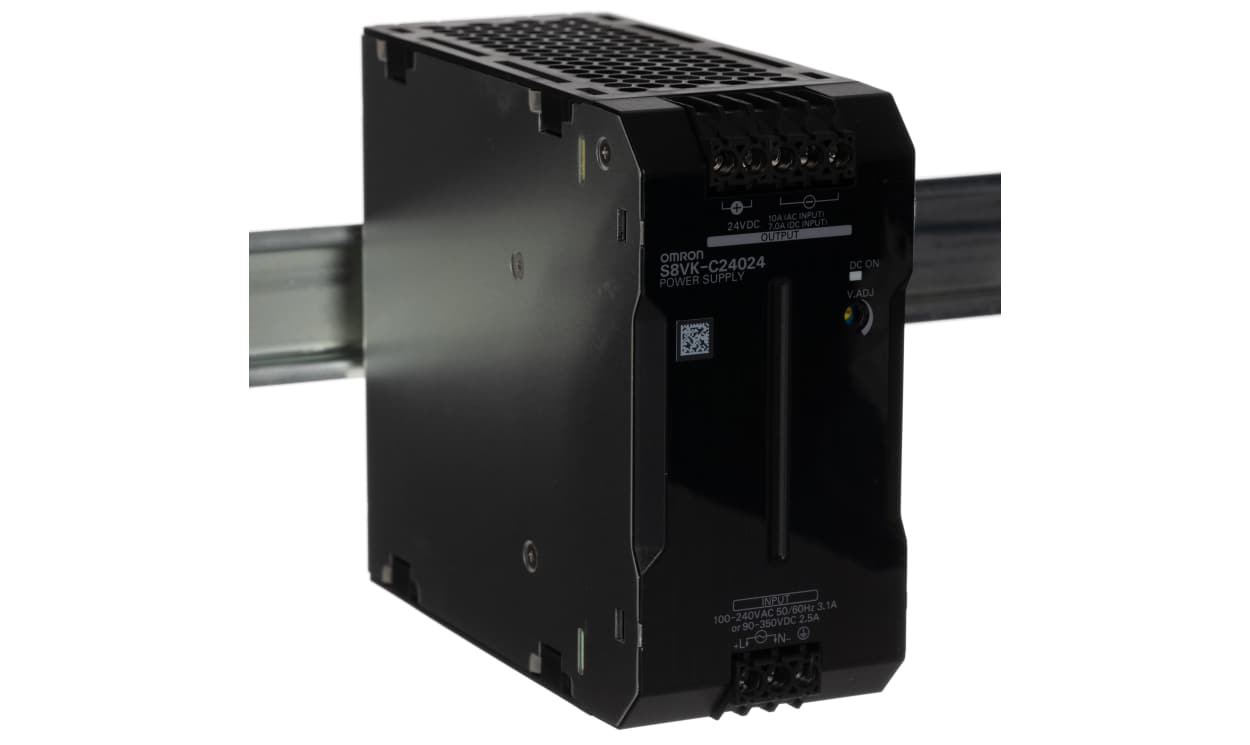

Omron S8VK-C24024, S8VK-C Switched Mode DIN Rail Power Supply, 100 → 240 V ac / 90 → 350V dc ac, dc Input, 24V dc dc

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron S8VK-C24024, S8VK-C Switched Mode DIN Rail Power Supply, 100 → 240 V ac / 90 → 350V dc ac, dc Input, 24V dc dc

Name: Omron S8VK-C24024, S8VK-C Switched Mode DIN Rail Power Supply, 100 → 240 V ac / 90 → 350V dc ac, dc Input, 24V dc dc
Brand: OMRON
SKU: S8VK-C24024
Availability: OutOfStock

Part Number : S8VK-C24024

Book type power supply, Lite, 240 W, 24VDC, 10A, DIN rail mounting

Availability: Sold out

Detailed Description
Specifications
Features
Downloads

60W to 480W S8VK-C Series

The S8VK-C series of power supplies are a space saving single phase power supply with universal input and safety worldwide standards. An excellent power supply that provides quality, reliability and cost effective. The pwer supply is a compact design which is easy to fit and withstands harsh environments plus suns for long periods within stable conditions. This vesatile series simply clicks onto a DIN rail saving you valuable time and effort.

OMRON DIN Rail Power Supply, 89% Efficiency, IP20 Rating - S8VK-C Series - S8VK-C24024

When you're in the market for an ultra-efficient PSU, turn to this DIN rail power supply from OMRON. It takes any voltage in a broad universal range from 85 to 264V AC or 90 to 350V DC and steps it down to a stable output of 24V DC. This means you can use it to run sensitive battery-supplied equipment from lots of supply setups. An impressive 89% efficiency rating means this eco-friendly option doesn't waste much energy or produce excess heat. As it stays cool using natural convection, there's no need for a heatsink or fan. Handy LED indicators ensure you stay up-to-date on operating status.

Features & Benefits

• IP20 rating lets you know it's touch-safe, so you're not at risk of electric shocks when handling it
• Works efficiently in a wide operating temperature range from -25°C to +60°C
• Resists shock and vibration, meaning you can install it safely near moving machinery

Applications

• Electrical engineering
• Panel building
• Automotive manufacture

What electrical protections does this PSU offer?

Thanks to a dielectric strength rating of up to 3kV AC, as well as overvoltage and overload protection, you can trust this unit is safely insulated against surges and withstands excess voltage and overcurrent.

Standards

UL508 listing, UL60950-1 recognition,
cUL: CSA C22.2 No. 107.1
cUR: CSA C22.2 No.60950-1
EN/VDE: EN50178 (=VDE0160), EN60950-1 (=VDE0805)
SELV (EN60950-1/EN50178/UL60950-1)

Brand	Omron
Series	S8VK-C
Type	Switched Mode
Electrical Phase	1
AC or DC Input Voltage	ac, dc
Number of Outputs	1
Input Voltage	100 → 240 V ac / 90 → 350V dc
AC or DC Output Voltage	dc
Output Voltage	24V dc
Output Current	10A
Dimensions	125 x 60 x 150mm
Width	60mm
Height	125mm
Depth	140mm
MTBF	270000h
Ripple And Noise	150mV
Output Voltage Adjustment Range	-10 → +15%
Mounting Type	DIN Rail Mount
Standards Met	CE, CSA Certified, UL
Special Features	Overvoltage and Short Circuit Protection

Book type power supply, Lite, 240 W, 24VDC, 10A, DIN rail mounting

Omron S8VK-C24024, S8VK-C Switched Mode DIN Rail Power Supply, 100 → 240 V ac / 90 → 350V dc ac, dc Input, 24V dc dc

DOWNLOAD CATALOG

S8VK-C24024 Brochure - Perfect Power Supply Solutions A700000010489390
