Omron S8VK-G01512, S8VK Switched Mode DIN Rail Power Supply, 100 → 240 V ac / 90 → 350V dc ac, dc Input, 12V dc dc

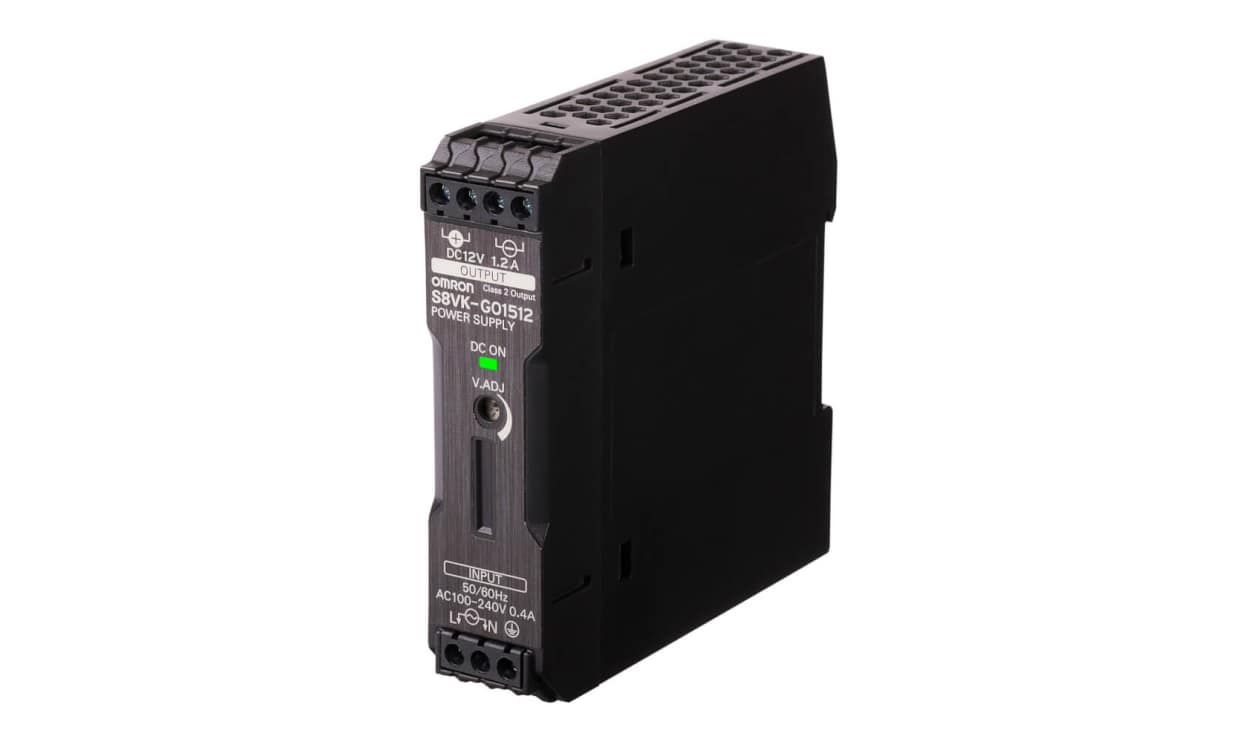

Name: Omron S8VK-G01512, S8VK Switched Mode DIN Rail Power Supply, 100 → 240 V ac / 90 → 350V dc ac, dc Input, 12V dc dc
Brand: OMRON
SKU: S8VK-G01512
Availability: OutOfStock

Part Number : S8VK-G01512

Book type power supply, Pro, 15 W, 12 VDC, 1.2A, DIN rail mounting

Availability: Sold out

Detailed Description
Specifications
Features
Downloads

Omron S8VK Series DIN Rail Power Supply, 1.2A Output Current, 15W Power Rating - S8VK--G01512

This DIN rail power supply is designed for consistent performance across various industrial applications. It provides a steady output of 12V DC with a current rating of 1.2A, making it suited for powering sensitive electronic circuits. The compact dimensions of 90x22.5x90mm facilitate installation in environments where space is limited while ensuring functionality.

Features & Benefits

• Supports a range of AC and DC input voltages
• Power supply efficiency of 77%
• Operates safely in high temperatures up to +70°C
• Durable with a mean time between failure (MTBF) of 600,000 hours
• Compact design for standard DIN rail systems
• Provides a stable output of 15W

Applications

• Suitable for automation control systems
• Powers sensors and actuators
• Ideal for electrical panel installations
• Used in process control equipment

Can it handle a wide range of input voltages?

Yes, it accepts input voltage from 100 to 240V AC and 90 to 350V DC.

Is it safe for high-temperature environments?

It operates safely up to +70°C, ensuring durability in various conditions.

Will it provide consistent output voltage?

It delivers a stable 12V DC output for dependable operation.

Can it be mounted easily?

The compact design allows for straightforward mounting on DIN rails.

Brand	Omron
Series	S8VK
Type	Switched Mode
Electrical Phase	1
AC or DC Input Voltage	ac, dc
Number of Outputs	1
Input Voltage	100 → 240 V ac / 90 → 350V dc
AC or DC Output Voltage	dc
Output Voltage	12V dc
Output Current	1.2A
Dimensions	90 x 22.5 x 90mm
Height	90mm
Width	22.5mm
Depth	90mm
Mounting Type	DIN Rail Mount
Efficiency	77%
Maximum Temperature	+70°C
Ripple And Noise	50mV
MTBF	600000h
Minimum Temperature	-40°C

Book type power supply, Pro, 15 W, 12 VDC, 1.2A, DIN rail mounting

Omron S8VK-G01512, S8VK Switched Mode DIN Rail Power Supply, 100 → 240 V ac / 90 → 350V dc ac, dc Input, 12V dc dc

DOWNLOAD CATALOG

S8VK-G01512 Type Approval Certificate Extension 0900766b815df68b

S8VK-G01512 Brochure - Perfect Power Supply Solutions A700000012598753
