Omron S8VK-S24024, S8VK-S Switched Mode DIN Rail Power Supply, 85 → 264 V ac, 90 → 350 V dc ac, dc Input, 24V dc dc

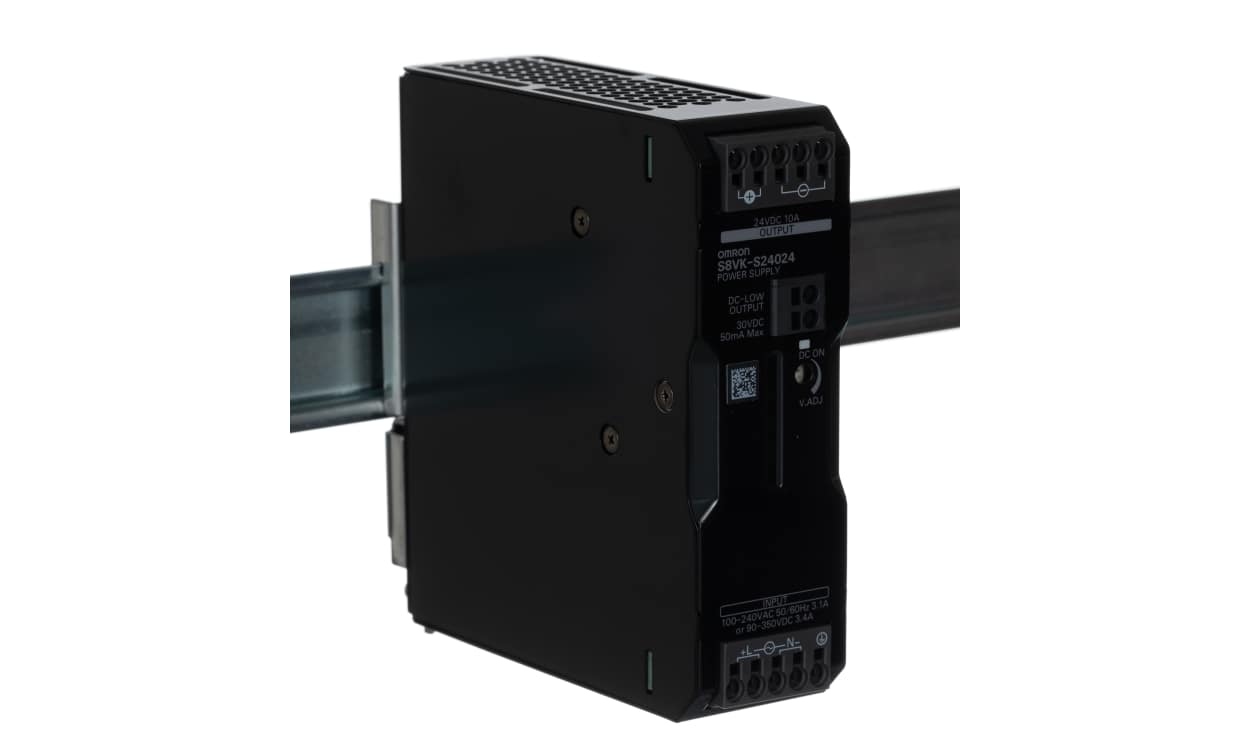

Name: Omron S8VK-S24024, S8VK-S Switched Mode DIN Rail Power Supply, 85 → 264 V ac, 90 → 350 V dc ac, dc Input, 24V dc dc
Brand: OMRON
SKU: S8VK-S24024
Availability: OutOfStock

Part Number : S8VK-S24024

Book type power supply, 240 W, 24 VDC, 10 A, DIN rail mounting, Push-in terminal, Coated, undervoltage alarm

Availability: Sold out

Detailed Description
Specifications
Features
Downloads

Omron S8VK-S Series DIN Rail Power Supply, 240W Power Rating, Single Phase - S8VK-S24024

This DIN rail power supply by Omron provides a reliable and efficient power source for industrial applications. With a power rating of 240W and high efficiency of 93%, it ensures optimal performance and safety.

Features & Benefits

• Single phase power supply suitable for various circuit configurations
• Overload protection ensures safe operation
• Compact design for easy installation in small control panels
• High efficiency rating of 93%

Applications

• Suitable for use in automation systems
• Ideal for small control panels in industrial settings
• Can be used for applications requiring a high efficiency power supply

Can it be used for parallel circuit configurations?

Yes, this DIN rail power supply supports both parallel and series circuit configurations.

Will it provide protection against over current and over voltage?

Yes, this power supply comes with protection features such as over current and over voltage protection.

Is it suitable for use in hazardous areas?

Yes, this power supply is ATEX certified, making it safe for use in hazardous environments.

Can it be mounted easily on a DIN rail?

Yes, it features a DIN rail mounting style for convenient installation.

What is the input frequency range for this power supply?

The input frequency range is between 50 to 60 Hz.

Brand	Omron
Series	S8VK-S
Type	Switched Mode
Electrical Phase	1
Number of Outputs	1
AC or DC Input Voltage	ac, dc
Input Voltage	85 → 264 V ac, 90 → 350 V dc
AC or DC Output Voltage	dc
Output Voltage	24V dc
Output Current	10A
Dimensions	124 x 38 x 117.8mm
Width	38mm
Height	124mm
Depth	117.8mm
Mounting Type	DIN Rail Mount
Efficiency	93%
Minimum Temperature	-40°C
Standards Met	ANSI/ISA 12.12.01, ATEX: EN 60079-0 -15, CSA C22.2 No. 213, cUL: CSA C22.2 No. 107.1, cUR: CSA C22.2 No. 60950-1, EN 60950-1, EN/IEC 61558-2-16:2009+A1:2013, EN: EN 50178, IEC-EX: IEC 60079-0 -15, Lloyd's Register DNV GL, PELV (EN/IEC 60204-1), UL Listed: UL 508, UL UR: UL 60950-1
Maximum Temperature	+70°C
Special Features	Better Resistance to Environment, Easy Wiring, Perfect Fit for Small Control Panels

Book type power supply, 240 W, 24 VDC, 10 A, DIN rail mounting, Push-in terminal, Coated, undervoltage alarm

Omron S8VK-S24024, S8VK-S Switched Mode DIN Rail Power Supply, 85 → 264 V ac, 90 → 350 V dc ac, dc Input, 24V dc dc

DOWNLOAD CATALOG

S8VK-S24024 Type Approval Certificate - LR 0900766b815df6a7

S8VK-S24024 ATEX Certificate 0900766b815df6b4

S8VK-S24024 Type Approval Certificate - DNV 0900766b815df6b8

S8VK-S24024 Brochure - Switch Mode Power Supplies A700000011071483
