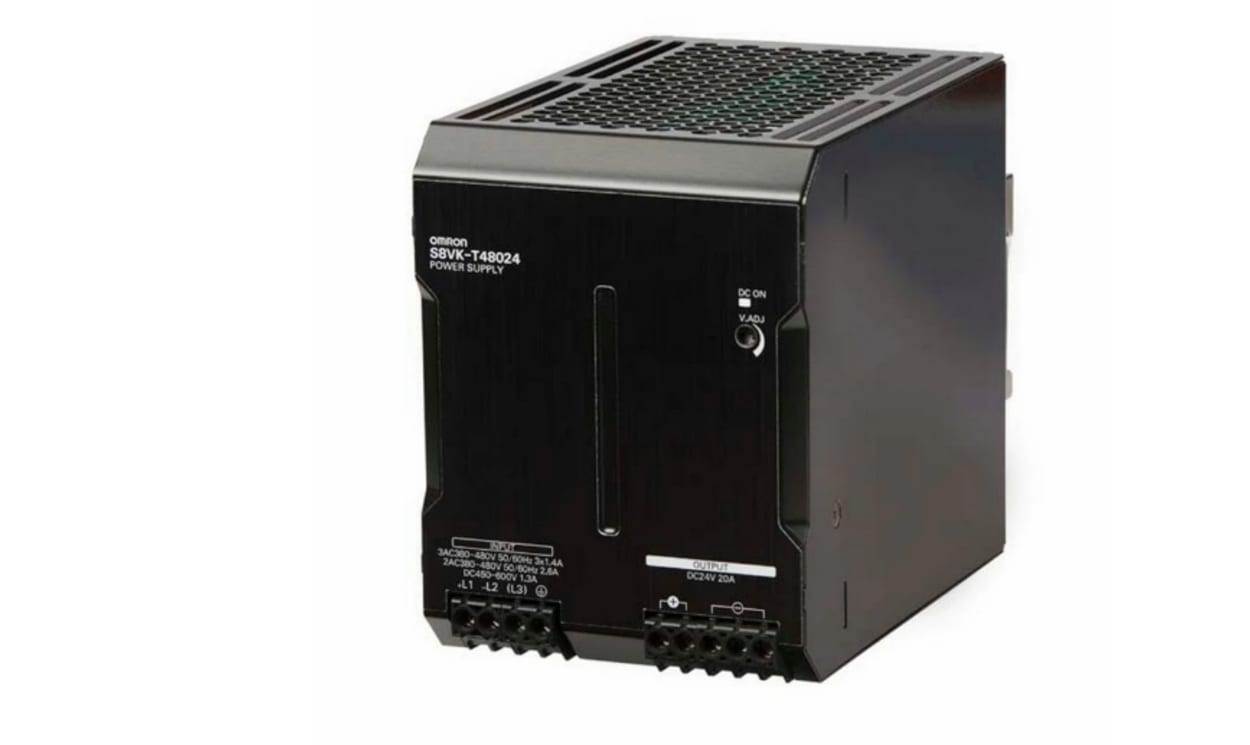

Name: Omron S8VK-T48024-400, S8VK-T Switched Mode DIN Rail Power Supply, 380 → 480 V ac, 450 → 810 V dc ac Input, 24V dc dc
Brand: OMRON
SKU: S8VK-T48024-400
Availability: OutOfStock

Omron S8VK-T48024-400, S8VK-T Switched Mode DIN Rail Power Supply, 380 → 480 V ac, 450 → 810 V dc ac Input, 24V dc dc

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron S8VK-T48024-400, S8VK-T Switched Mode DIN Rail Power Supply, 380 → 480 V ac, 450 → 810 V dc ac Input, 24V dc dc

Part Number : S8VK-T48024-400

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron S8VK-T Series Din Rail Power Supply, 24V Output Voltage, 20A Output Current - S8VK-T48024-400

This DIN Rail power supply is a highly efficient solution for industrial applications. Designed for easy mounting on DIN rails, it offers a compact and robust 125 x 95 x 140 mm case. With a 24V DC output and a maximum power rating of 480W, it efficiently converts AC or DC input voltage ranging from 380 to 480 V AC and 450 to 810 V DC.

Features & Benefits

• High efficiency of 91%, optimising energy usage
• Supports a wide input range for versatile requirements
• Fast installation with easy DIN rail mounting
• Automatic reset overload protection to safeguard equipment
• Adjustable output voltage for flexible power supply solutions

Applications

• Used for powering automation equipment in factories
• Ideal for use in control panels for electrical systems
• Support for various electronic devices in industrial settings
• Utilised in systems requiring reliable DC voltage regulation
• Suitable for harsh environments with high efficiency demands

What input voltages can be used with this power supply?

It can accept input voltages ranging from 380 to 480 V AC or 450 to 810 V DC, making it suitable for global applications.

How does the overload protection function work?

The device automatically resets when the output current exceeds 121% of the rated current, ensuring the load is protected from damage.

What is the expected lifespan of this power supply?

Its Mean Time Between Failures (MTBF) is approximately 230,000 hours, reflecting reliability in demanding operational environments.

Can this power supply operate in extreme temperatures?

Yes, it is designed to function efficiently between -40°C and +70°C, making it reliable in both cold and hot conditions.

Is installation straightforward for non-experienced users?

Yes, the easy DIN rail mounting feature allows quick installation without extensive technical knowledge.

Brand	Omron
Series	S8VK-T
Type	Switched Mode
Electrical Phase	3
AC or DC Input Voltage	ac
Number of Outputs	1
Input Voltage	380 → 480 V ac, 450 → 810 V dc
AC or DC Output Voltage	dc
Output Voltage	24V dc
Output Current	20A
Dimensions	125 x 95 x 140mm
Width	95mm
Depth	140mm
Height	125mm
Standards Met	CE
Minimum Temperature	-40°C
Mounting Type	DIN Rail Mount
Load Regulation	1.5%
Ripple And Noise	470mV Pk-Pk
Efficiency	91%

Omron S8VK-T48024-400, S8VK-T Switched Mode DIN Rail Power Supply, 380 → 480 V ac, 450 → 810 V dc ac Input, 24V dc dc

DOWNLOAD CATALOG

S8VK-T48024-400 Brochure - Switch Mode Power Supplies A700000013470301
