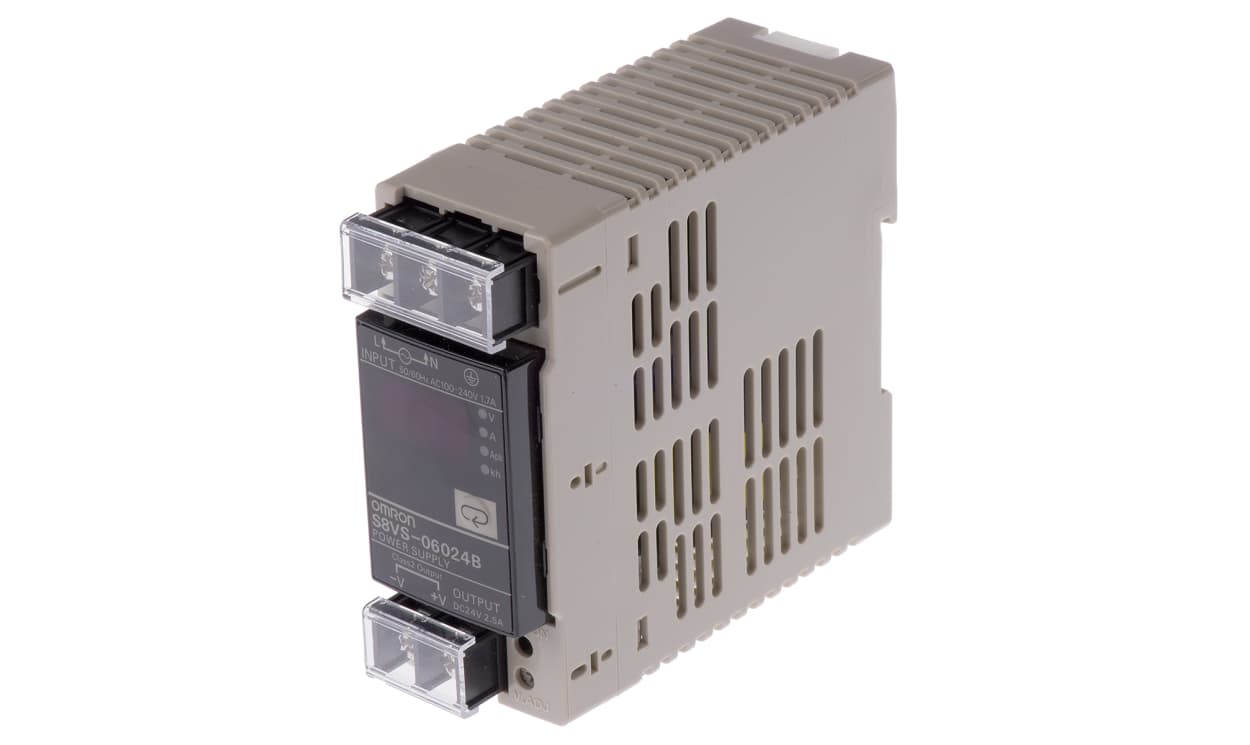

Name: Omron S8VS-06024B, S8VS Switched Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 24V dc dc Output, 2.5A Output, 60W
Brand: OMRON
SKU: S8VS-06024B
Availability: OutOfStock

Omron S8VS-06024B, S8VS Switched Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 24V dc dc Output, 2.5A Output, 60W

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron S8VS-06024B, S8VS Switched Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 24V dc dc Output, 2.5A Output, 60W

Part Number : S8VS-06024B

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron S8VS Series Power Supply, 24V DC Output Voltage, 2.5A Output Current - S8VS-06024B

This power supply is a robust DIN rail unit designed for a variety of industrial applications. With a compact size of 108.3 x 40 x 95mm, it offers a reliable output of 24V DC at a maximum current of 2.5A, delivering a power rating of 60W. The unit is engineered to operate efficiently within an input voltage range of 85 to 264V AC, ensuring versatility and reliability for demanding environments.

Features & Benefits

• High efficiency power supply with an efficiency rate of 85%
• Load regulation ensures stable output voltage under varying conditions
• Maximum MTBF of 135,000 hours for long-term reliability
• Low ripple and noise levels enhance performance in sensitive usage
• Single output channel simplifies integration into existing systems

Applications

• Used in automation systems requiring stable DC power
• Ideal for powering control devices in electrical panels
• Suitable for in mechanical and electronic installations
• Effective as an AC to DC power converter in industrial devices

What input voltage range can this unit accommodate?

It can accept input voltages between 85 to 264 V AC, making it suitable for various electrical environments.

How does the load regulation feature enhance performance?

With a regulation accuracy of ±1.5%, it maintains a consistent output voltage even with fluctuating loads, ensuring reliable operation of connected devices.

What considerations should be made regarding temperature when using this device?

The operating temperature range is from -10°C to +60°C, allowing it to function effectively in a range of environments, but extra care should be taken to avoid exposing it to temperatures outside this range.

Standards

Harmonic current emissions conform to EN61000-3-2.
Conforms to SEMI F47-0200 (when 200 V ac input is used)
UL 508 (Listing; Class 2 Output: Per UL1310)
UL UR: UL 60950-1 (recognition)
cUL: CSA C22.2 No.107.1 (Class 2 Output: Per CSA C22.2 No. 223)
cUR: CSA C22.2. No 60950-1,
EN/VDE: EN 50178 (=VDE 0160), EN 60950-1 (=VDE 0805 Teil 1)
KOSHA S Mark* 10

Brand	Omron
Series	S8VS
Type	Switched Mode
Electrical Phase	1
Number of Outputs	1
AC or DC Input Voltage	ac
Input Voltage	85 → 264V ac
AC or DC Output Voltage	dc
Output Voltage	24V dc
Output Current	2.5A
Dimensions	108.3 x 40 x 99.5mm
Width	40mm
Depth	108.3mm
Height	95mm
Efficiency	78%
Minimum Temperature	-10°C
Ripple And Noise	±2%
Load Regulation	±1.5%
Mounting Type	DIN Rail Mount
Maximum Temperature	+60°C
