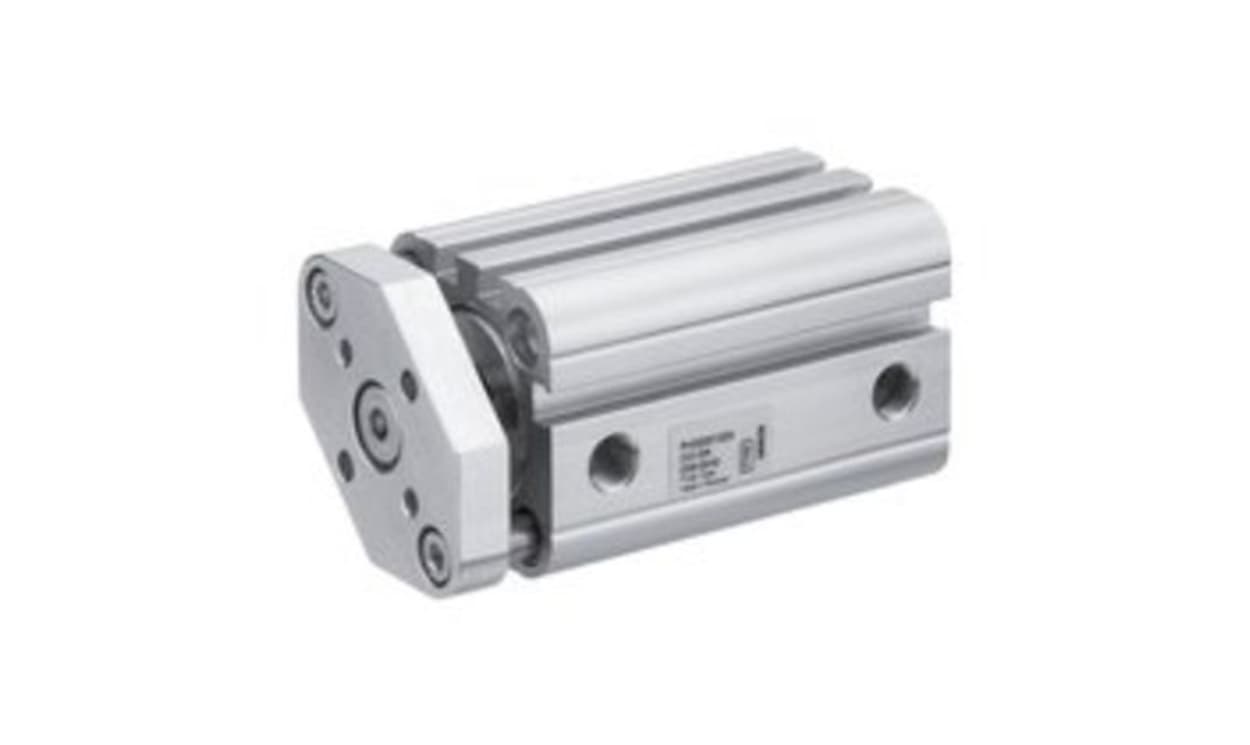

AVENTICS R422001307 Pneumatic Compact Cylinder - , 50mm Bore, 25mm Stroke, CCI Series, Double Acting

Name: AVENTICS R422001307 Pneumatic Compact Cylinder - , 50mm Bore, 25mm Stroke, CCI Series, Double Acting
Brand: Aventics
SKU: R422001307
Availability: OutOfStock

Part Number : R422001307

Availability: Sold out

Detailed Description
Specifications
Downloads

The Aventics compact cylinder, designed in accordance with ISO 21287, exemplifies innovation in engineering and efficiency. Built for demanding applications, it combines a space-saving structure with an easy-to-clean design, making it the ideal choice for industrial settings where performance under pressure is key. The swivel-mounted sensors enhance usability, enabling quick installation and adjustment along the entire cylinder length. The Series CCI proves invaluable for operations requiring long strokes and superior cycle optimisation, ensuring that your processes are streamlined and effective. Constructed from high-quality materials, this product meets stringent environmental standards, ensuring reliability in diverse working conditions.

Compact design suitable for limited installation spaces
Double-acting functionality for efficient operations
Elastic cushioning minimizes wear and tear during motion
Versatile sensor installation on all sides enhances adaptability
Extreme temperature resilience, from -20 °C to 80 °C
Dual coating materials ensure durability and longevity
Pressure capabilities reaching up to 10 bar for robust performance
Optional ATEX compliance for hazardous environments

Brand	AVENTICS
Manufacturer Series	CCI
Model Number p	R422001307
Stroke	25mm
Action	Double
Bore	50mm
Pneumatic Connection	G 1/8
Port Connection	G 1/8
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 21287
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+80°C

AVENTICS R422001307 Pneumatic Compact Cylinder - , 50mm Bore, 25mm Stroke, CCI Series, Double Acting

DOWNLOAD CATALOG

R422001307 Datasheet - R422001307 A700000012576272

R422001307 Datasheet - R422001307 A700000012580647
