Dwyer Instruments CDWP-05W-C1 | Industrial CO2 Transmitter | 0-5000 PPM range | Wall mount | With 1-6mm cable gland

Name: Dwyer Instruments CDWP-05W-C1 | Industrial CO2 Transmitter | 0-5000 PPM range | Wall mount | With 1-6mm cable gland
Brand: Dwyer
SKU: CDWP-05W-C1
Availability: OutOfStock

Part Number : CDWP-05W-C1

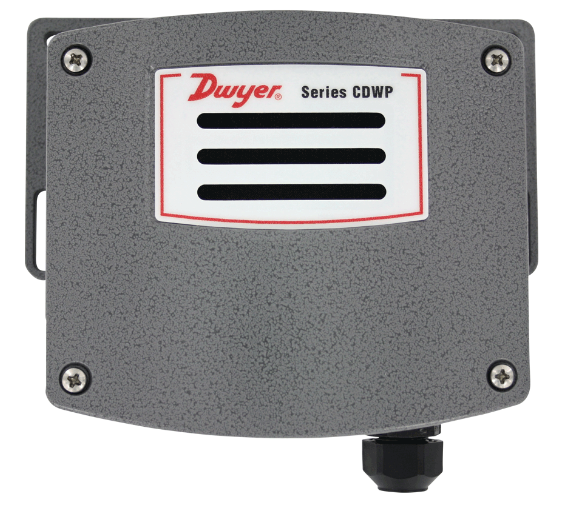

To help save energy, the Series CDWP, Model CDWP-05W-C1 Carbon Dioxide Transmitter precisely measures the CO2 content in indoor and industrial settings. The tough IP54 aluminum housing used by the CDWP has an external gray paint coat and has been tested to survive a 168-hour salt spray corrosion test. Because of its ruggedized housing, which guards against liquid splashes and flying dust and debris, the Series CDWP is a fantastic choice for confined feeding operations and animal husbandry applications.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	CO2: +/-40 PPM + 3% of reading (2000 PPM); +/-50 PPM + 5% of reading (5000 PPM); +/-50 PPM + 10% of reading (10000 PPM)
Approvals	CE
Enclosure Rating	IP54
Humidity	Limits: 10 to 95% RH (non-condensing, 2000 and 5000 PPM); 0 to 85% RH (non-condensing, 10000 PPM)
Maximum operating temperature	32 to 122°F (0 to 50°C)
Mounting	Orientation: Vertically, with electrical connections pointing downward
Non Linearity	16 PPM (2000 and 5000 PPM); N/A (10000 PPM)
Output	Current: 4-20 mA (max. 500 ¢ž¦) Voltage: 0-5 VDC or 0-10 VDC (min. 500 ¢ž¦)
POWER CONSUMPTION	Average: 2 w Peak: 3.75 w
Power	16-35 VDC or 19-28 VAC
PRESSURE	Dependence: 0.13% of reading per mm of Hg (2000 and 5000 PPM); N/A (10000 PPM)
Range	CO2: 0 to 2000, 0 to 5000, or 0 to 10000 PPM (depending on model)
Response Time	300 s (t63) (2000 and 5000 PPM); 2 min for 90% step change (10000 PPM)
Sensor Type	NDIR
Temperature	Dependence: +/-8 PPM/°C at 1100 PPM (2000 and 5000 PPM); N/A (10000 PPM)
Weight	26.24 oz (744 g)

There are no issues with the tough aluminum housing's durability.
The IP54 housing is resistant to corrosion and water infiltration, and it can sustain 168 hours of salt spray testing.
Lower operating costs by employing a CO2 sensor that is low energy, consistent, and dependable.
