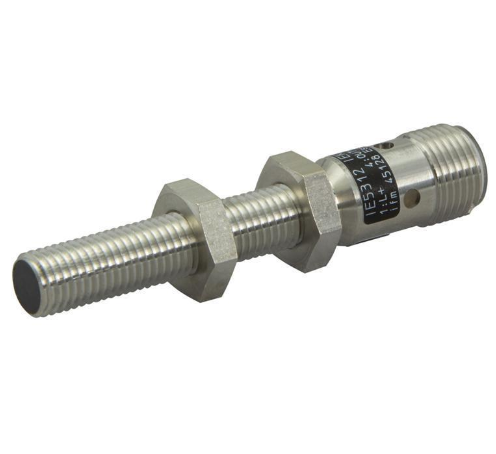

Inductive sensor ifm electronic IE5312 - IEK3002BBPKG/US
The inductive sensor IE5312 - IEK3002BBPKG/US from ifm operates with a supply voltage of 10-36 V DC. The output is a positive-switching NO contact. Thanks to the increased sensing range of 2 mm with flush installation the inductive sensor IE5312 - IEK3002BBPKG/US provides more reliability in your applications. Thanks to the protection rating IP67, 4-fold LED and standardised M12 connector the inductive sensor IE5312 - IEK3002BBPKG/US is often used in handling technology and in special purpose machine building.
- Specifications
- Features
- Downloads
Electrical design | PNP |
Housing | Threaded type |
Mounting | Flush mountable |
Operating voltage [V] | 10-36 DC V |
Output function | Normally open |
Overload protection | Yes |
Reverse polarity protection | Yes |
Sensing range [mm] | 2 mm |
Short-circuit protection | Yes |
Switching frequency DC [Hz] | 1000 Hz |
- For use where space is restricted
- Long sensing range for high uptime
- Robust stainless steel housing for use in harsh industrial environments
- Very high switching frequency
- Clearly visible indication of the switching status
