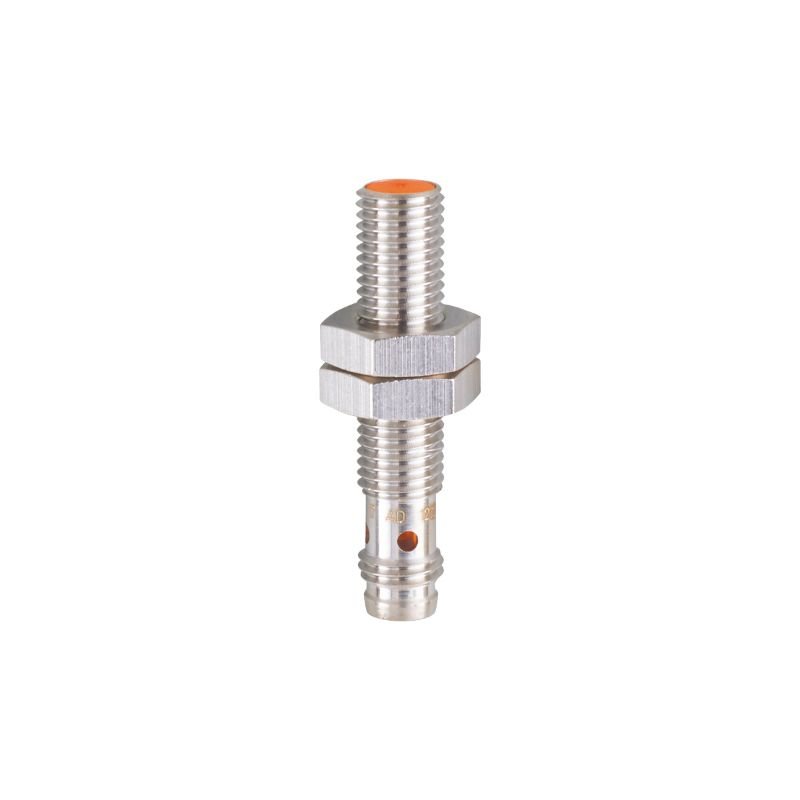

ifm IE5338 - IEBC003BASKG/AS | Inductive Sensor | 3 mm, Normally open
The ifm IE5338 - IEBC003BASKG/AS is an inductive sensor with sensing range 3 mm, output function Normally open and electrical design PNP/NPN. ifm lists particularly short housing, for use where space is restricted and clearly visible indication of the switching status among its features.
- Ambient temperature: 0 to 60 °C
- Dimensions: 40 mm
- Electrical design: PNP/NPN
- Housing: Cylindrical and Threaded
- Installation: Flush
- Operating voltage: 10-30 DC V
- Output function: Normally open
- Sensing range: 3 mm
- Specifications
- Features
- Downloads
| Electrical Design | PNP/NPN |
| Housing | Cylindrical and Threaded |
| Operating Voltage [V] | 10-30 DC V |
| Output Function | Normally open |
| Sensing Range [mm] | 3 mm (0.118 in) |
| Installation | Flush |
| Ambient Temperature | 0 to 60 °C (32 to 140 °F) |
| Dimensions | 40 mm (1.57 in) |
- Particularly short housing
- For use where space is restricted
- Clearly visible indication of the switching status
- Long sensing range for high uptime
- Reduced stock-keeping due to operation as three-wire or two-wire unit
