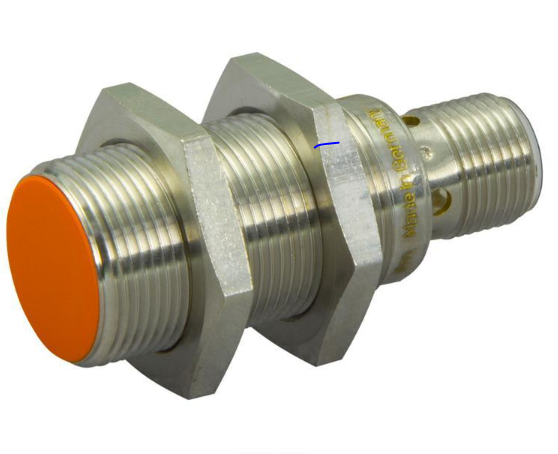

Inductive sensor ifm electronic IGS204 - IGB3008BBPKG/M/US
The inductive sensor IGS204 - IAE3008-BPKG/M/US from ifm operates with a supply voltage of 10-36 V DC. The output is a positive-switching NO contact. Thanks to the increased sensing range of 8 mm with flush installation the inductive sensor IGS204 - IGB3008BBPKG/M/US provides more reliability in your applications. Thanks to the lasered type label, 4- LED and standardised M12 connector the inductive sensor IFS204 - IFB3008BBPKG/M/US is often used in factory automation and in machine building.
- Specifications
- Features
- Downloads
| Current consumption [mA] | <10 |
| Electrical design | PNP |
| Housing | Threaded type |
| Installation | Flush |
| Mounting | Flush mountable |
| Operating voltage [V] | 10-30 DC V |
| Output function | Normally open |
| Reverse polarity protection | yes |
| Sensing range [mm] | 8 mm |
| System | Gold-plated contacts; Increased sensing range |
- Robust metal housing for use in harsh industrial environments
- Clearly visible indication of the switching status
- Long sensing range for high uptime
- Permanently legible laser type label
