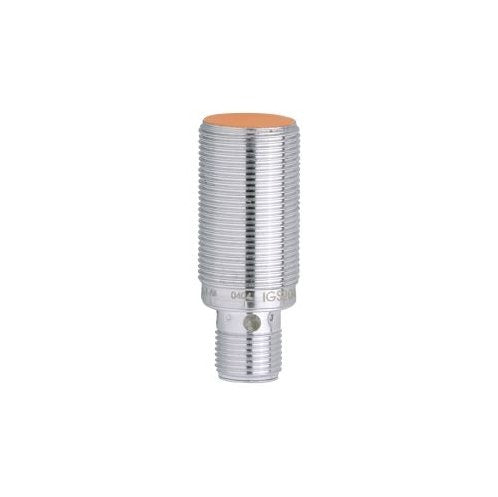

Inductive sensor ifm IGS204 IGB3008BBPKG/US-104
The IGS204 - IGB3008BBPKG/US-104 inductive sensor from ifm electronic operates with a supply voltage of 10-36 V DC. Thanks to the high protection rating IP68/IP69K, the temperature range of 0-100 °C and the lasered nameplate, the IGT204 - IGB3008BBPKG/US-104 inductive sensor with a sensing range of 8 mm with flush installation is the optimal proximity switch for use in the food industry. The sensor is temperature shock resistant and the resistance to high pressure cleaning and aggressive cleaning agents has been ECOLAB test certified.
- Specifications
- Features
- Downloads
Current consumption [mA] | <10 |
Electrical design | PNP |
Housing | Threaded type |
Mounting | Flush mountable |
Operating voltage [V] | 10-30 DC V |
Output function | Normally open |
Reverse polarity protection | Yes |
Sensing range [mm] | 8 mm |
System | Gold-plated contacts; Increased sensing range |
- Robust metal housing for use in harsh industrial environments
- Clearly visible indication of the switching status
- Long sensing range for high uptime
- Permanently legible laser type label
