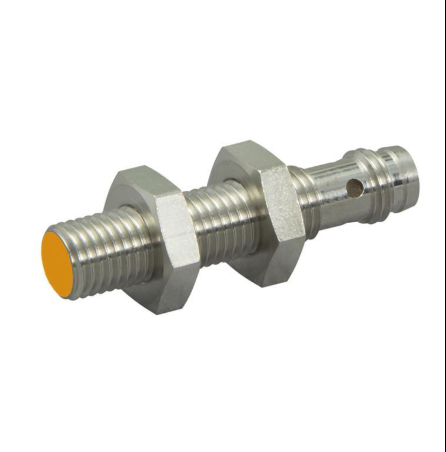

Inductive sensor ifm electronic IE5349 - IEBC003BBSKG/AS
The inductive sensor IE5349 - IEBC003BBSKG/AS from ifm electronic operates with a supply voltage of 10-30 V DC. A Normally Closed PNP contact is available as an output. Thanks to the increased switching range of 3 mm with flush mounting, the inductive sensor IIE5349 - IEBC003-BSKG/AS offers more safety in your applications. Thanks to a laser-engraved name plate, a 4-fold switching status display and a standard M8 plug-in connection, the IE5349-IEBC003-BSKG/AS inductive sensor is often used in handling technology and in special purpose machine building.
- Specifications
- Features
- Downloads
| Ambient temperature | 0 to 60 °C |
| Electrical design | PNP/NPN |
| Housing | Threaded type |
| Installation | Flush |
| Mounting | Flush mountable |
| Operating voltage [V] | 10-30 DC V |
| Output function | Normally closed |
| Reverse polarity protection | Yes |
| Sensing range [mm] | 3 mm |
| Short-circuit protection | Yes |
- Particularly short housing
- For use where space is restricted
- Clearly visible indication of the switching status
- Long sensing range for high uptime
- Reduced stock-keeping due to operation as three-wire or two-wire unit
