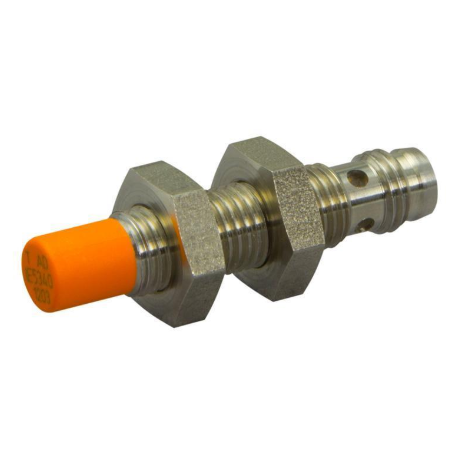

Inductive sensor ifm electronic IE5340 - IEBC005-ASKG/AS-514
The inductive sensor IE5340 - IEBC005-ASKG/AS-514 from ifm operates with a supply voltage of 10-30 V DC. The output is a positive-switching NO contact. Thanks to the increased sensing range of 5 mm with non-flush installation the inductive sensor IE5340 - IEBC005-ASKG/AS-514 provides more reliability in your applications. Thanks to the lasered type label, 4-fold LED and standardised M8 connector the inductive sensor IE5340 - IEBC005-ASKG/AS-514 is often used in handling technology and in special purpose machine building.
- Specifications
- Features
- Downloads
Ambient temperature | 0 to 60 °C |
Electrical design | PNP/NPN |
Housing | Threaded type |
Installation | Non flush |
Mounting | Non-flush mountable |
Operating voltage [V] | 10-30 DC V |
Output function | Normally open |
Reverse polarity protection | Yes |
Sensing range [mm] | 5 mm |
Short-circuit protection | Yes |
- Particularly short housing
- For use where space is restricted
- Clearly visible indication of the switching status
- Long sensing range for high uptime
- Reduced stock-keeping due to operation as three-wire or two-wire unit
