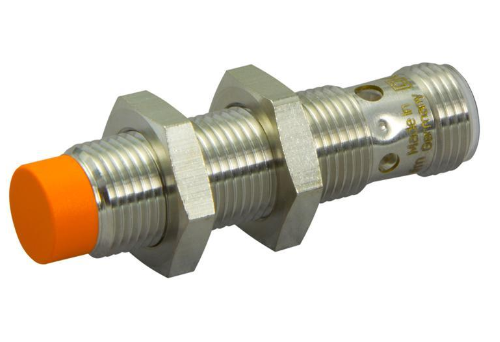

Inductive sensor ifm electronic IFS247 - IFB3007-ANKG/US-104
The inductive sensor IFS247 - IFB3007-ANKG/US-104 from ifm electronic operates with a supply voltage of 10-30 V DC. A NO NPN contact is available as an output. Thanks to the increased switching range of 7 mm with non-flush mounting, the inductive sensor IFS247 - IFB3007-ANKG/US-104 offers more safety in your applications. Thanks to the lasered type label, 4-fold LED and standardised M12 connector, the inductive sensor IFS247 - IFB3007-ANKG/US-104 is often used in factory automation and in machine building.
- Specifications
- Features
- Downloads
| Electrical design | NPN |
| Housing | Threaded type |
| Mounting | non-flush mountable |
| Operating voltage [V] | 10-30 DC V |
| Output function | normally open |
| Overload protection | yes |
| Reverse polarity protection | yes |
| Sensing range [mm] | 7 mm |
| Short-circuit protection | yes |
| Switching frequency DC [Hz] | 700 Hz |
- Suitable for industrial, mobile, cooling and lubricating applications
- High protection rating for the requirements of harsh industrial environments
- Wide operating temperature range
- Safe detection due to large sensing range and low sensor tolerances
- Reduced inventory due to wide range of applications
