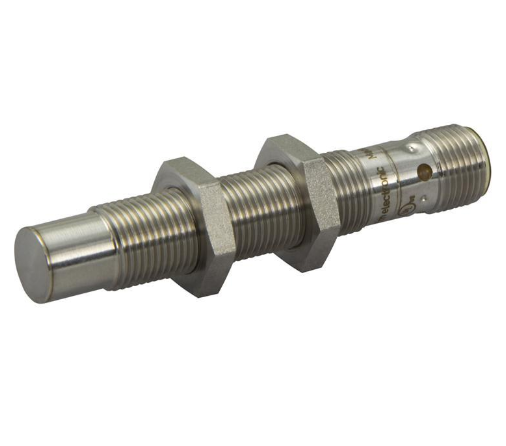

Inductive sensor ifm electronic IFT245 - IFK3006-BPKG/AM/P/US-104-DPS
The full-metal inductive sensor IFT245 - IFK3006-BPKG/AM/P/US-104-DPS from ifm operates with a supply voltage of 10-36 V DC. Thanks to the high protection rating IP68/IP69K, the temperature range of 0-100 °C and the lasered type label the inductive full-metal sensor IFT245 - IFK3006-BPKG/AM/US-104-DPS with a sensing range of 6 mm with non-flush installation is the optimum proximity switch for use in the food industry. The resistance to high-pressure cleaning and aggressive cleaning agents was certified by an ECOLAB test.
- Specifications
- Features
- Downloads
Electrical design | PNP |
Housing | Threaded type |
Mounting | Non-flush mountable |
Operating voltage [V] | 10-36 DC V |
Output function | Normally open |
Overload protection | Yes |
Reverse polarity protection | Yes |
Sensing range [mm] | 6 mm |
Short-circuit protection | Yes |
Switching frequency DC [Hz] | 500 Hz |
- Robust full-metal stainless steel housing for use in the food and beverage industry
- Wide operating temperature range
- Temperature shock resistant even in case of frequent temperature fluctuations
- Resistant to high-pressure cleaning with aggressive cleaning agents
- Long sensing range for high uptime
