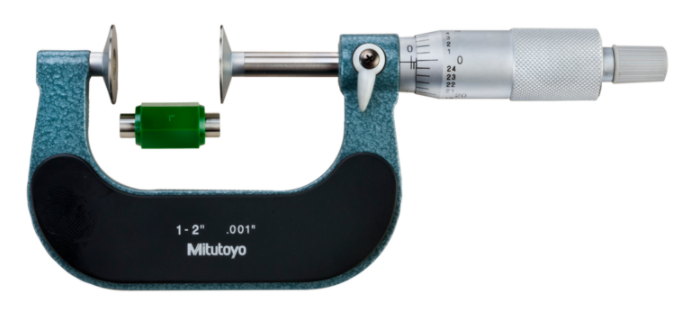

Name: Mitutoyo 123-126 Disc Micrometer, Hardened Steel Disks 1-2", Disk=20mm
Brand: Mitutoyo
SKU: 123-126
Availability: OutOfStock

Part Number : 123-126

This Disc Micrometer enables you to measure hard-to-reach features, offering you the following benefits:

Measuring the root tangent length of spur and helical gears.
You can measure recessed features that are difficult to reach with a standard micrometer.

Availability: Sold out

Free UAE shipping available

Analog/Digital	Analog
Delivered	Including box, setting standard (from 25 mm upward), key
Flatness	0.00004"
Graduation	0.001"
Inch-Metric	Inch
Mass (main unit)	200 g
Measuring spindle	With spindle lock, ƒ ̧6.35 mm, spindle pitch 0.635 mm
Parallelism	0.0002"
Range	1 - 2"
Scale	Thimble and sleeve satin chrome finish, ƒ ̧18 mm

This Disc Micrometer enables you to measure hard-to-reach features, offering you the following benefits:

Measuring the root tangent length of spur and helical gears.
You can measure recessed features that are difficult to reach with a standard micrometer.
