Lead Gauges
For the oilfield, mining, water well, and general machining industries, Gagemaker designs and manufactures precise mechanical inspection equipment. The lead gauge inspects thread lead by inserting contact points into the part's threads. The distance between threads, measured in a plane parallel to the threaded part's centerline, is known as thread lead. The diameter of the needed contact points is determined by the pitch of a thread.
Part Number : Gagemaker LG-5003-1
Gagemaker LG-5003-1, 3-point external/internal lead gage, ½" travel, 0.0001" resolution, ½" – 4" (0 mm – 101.6 mm)Thread Length
VIEW
ADD TO CART
Part Number : Gagemaker LG-6002-M
Gagemaker LG-6002-M, 2-point internal lead gage with metric indicator, 0.01mm Resolution, ½" – 4" (0 mm – 101.6 mm)Thread Length
VIEW
ADD TO CART
Part Number : Gagemaker LG-6002
Gagemaker LG-6002, 2-point internal lead gage, 0.0005" Resolution , ½" – 4" (0 mm – 101.6 mm)Thread Length
VIEW
ADD TO CART
Part Number : Gagemaker LG-6001
Gagemaker LG-6001, 2-point external lead gage, 0.0005" Resolution, ½" – 2" (12.7 mm – 50.8 mm)Thread Length
VIEW
ADD TO CART
Part Number : Gagemaker LG-6001-1
Gagemaker LG-6001-1, 2-Point External Lead Gage, ¼" travel, 0.0001" Resolution, ½" – 2"(12.7 mm – 50.8 mm)Thread Length
VIEW
ADD TO CART
Part Number : Gagemaker LG-5003-J
Gagemaker LG-5003-J, 3-point external/internal lead gage, 0.0005" Resolution, ½” – 4” (0 mm – 101.6 mm)Thread Length
VIEW
ADD TO CART

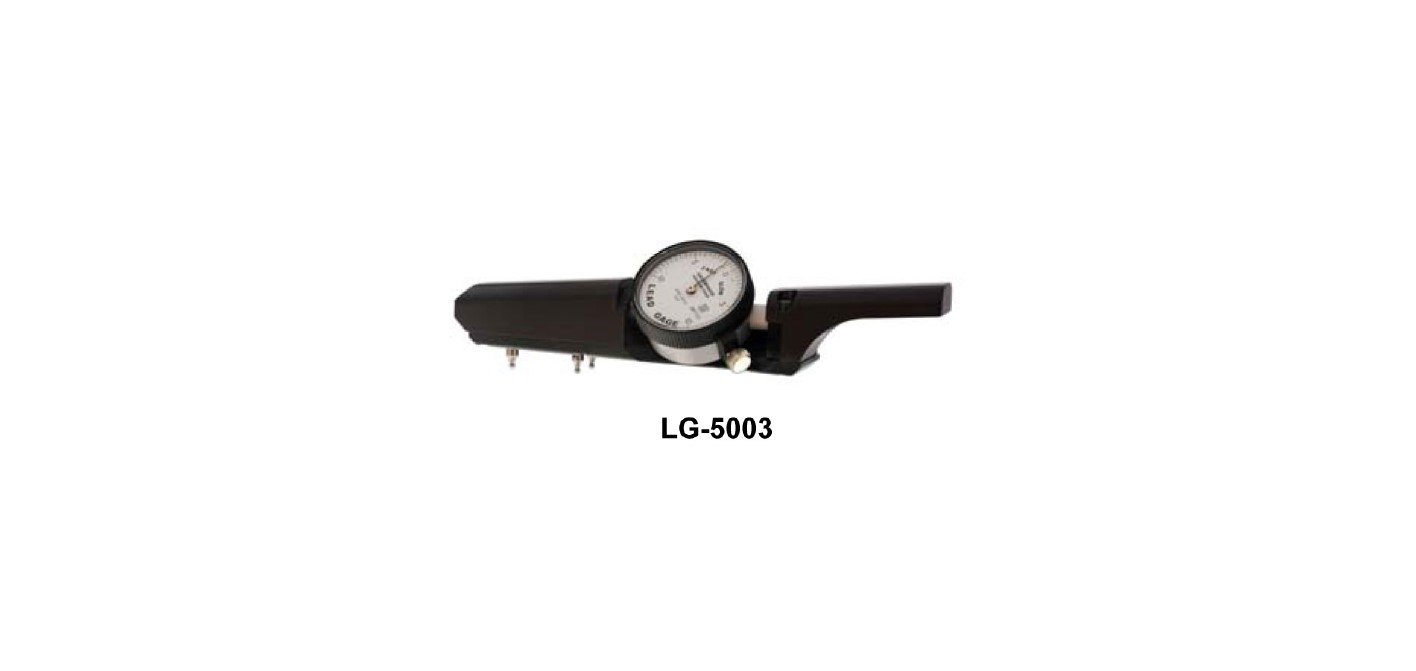

Part Number : Gagemaker LG-5003
Gagemaker LG-5003, 3-point External/Internal Lead Gage, 0.0005" Resolution ,½" – 4" (0 mm – 101.6 mm) Thread Length
VIEW
ADD TO CART
Part Number : Gagemaker LG-6002-1
Gagemaker LG-6002-1, 2-point internal lead gage, ¼" travel, 0.0001" Resolution, ½" – 4" (0 mm – 101.6 mm)Thread Length
VIEW
ADD TO CART
Part Number : Gagemaker LG-5003-S
Gagemaker LG-5003-S, Stab to stab 3-point external/internal lead gage, 0.0005" Resolution, ½" – 4" (0 mm – 101.6 mm)Thread Length
VIEW
ADD TO CART
Part Number : Gagemaker LG-5003-L
Gagemaker LG-5003-L, Load to load 3-point external/internal lead gage, 0.0005" Resolution, ½” – 4” (0 mm – 101.6 mm) Thread Length.
VIEW
ADD TO CART
Part Number : Gagemaker LG-5003-M
Gagemaker LG-5003-M, 3-point External/Internal Lead Gage, 0.01mm Resolution ,½" – 4" (0 mm – 101.6 mm) Thread Length
VIEW
ADD TO CART
Part Number : Gagemaker LG-5003-1J
Gagemaker LG - 5003-1J, 3-point external/internal lead gage, 0.0001" Resolution, ½” – 4” (0 mm – 101.6 mm)Thread Length
