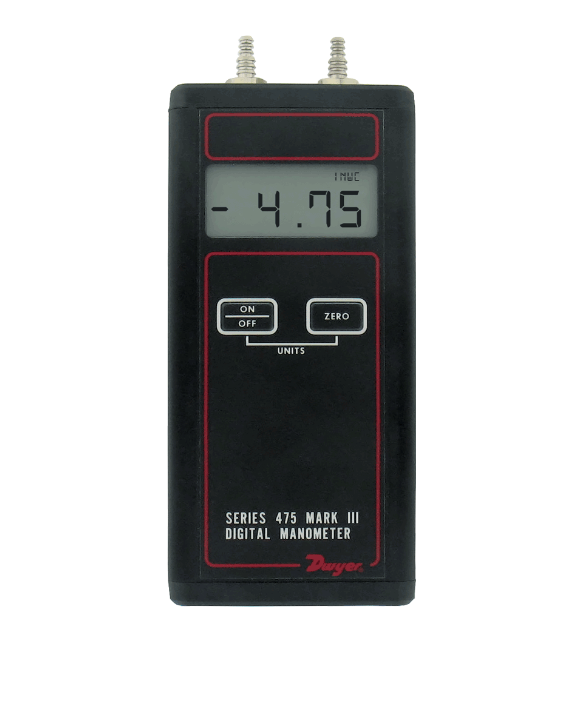

Dwyer Instruments 475-2-FM | Digital Pressure Meter | 1.44Psi | Model 475-2-Fm | NULL

Dwyer Instruments 475-2-FM | Digital Pressure Meter | 1.44Psi | Model 475-2-Fm | NULL

Brand :

Stock Status : Contact us for delivery

Brand :

Stock Status :

Out of Stock

Part Number : 475-2-FM

Between 1 in w.c. (0.249 kPa) to 150 psid (10.34 bar), the Series 475 Handheld Digital Manometer measures the positive, negative, or differential pressures of air and natural gases. The on/off, auto-zero, and pressure unit selection are all controlled by the twin push pads on the front panel, making operation straightforward and requiring no setup. The Series 475 can also be used as an air velocity gauge when paired with a Dwyer® Pitot tube.

Specification
Features
Catalog

Specifications

Details

Material

Wetted: Consult Factory

Accuracy

±0.5% Full Scale, 60 to 78°F (15.6 to 25.6°C); ±1.5% Full Scale from 32 to 60°F and 78 to 104°F (0 to 15.6°C and 25.6 to 40°C)

PRESSURE

Hysteresis: ±0.1% of Full Scale

Temperature

Limits: 0 to 140°F (-17.8 to 60°C)

Temperature

Compensated Temperature Limits: 32 to 104°F (0 to 40°C)

Display

0.42" (10.6 mm) 4-digit LCD

Power

9 V alkaline battery, installed non-functional, user replaceable

Weight

10.8 oz. (306 g)

Approvals

CE, FM.

Temperature

Storage Temperature Limits: -4 to 176°F (-20 to 80°C)

Connection

Process: Two barbed connections for use with 1/8" (3.18 mm) or 3/16" (4.76 mm) I.D. tubing. Two compression fittings for use with 1/8" (3.18 mm) I.D. x 1/4" (6.35 mm) O.D. tubing for 475-7 & 475-8 only

Type

Digital Manometer
