Dwyer Instruments DXW-11-153-3 | Pressure Switch | 25-50 PSI

Dwyer Instruments DXW-11-153-3 | Pressure Switch | 25-50 PSI UAE

Dwyer Instruments DXW-11-153-3 | Pressure Switch | 25-50 PSI

Brand : Dwyer
Stock Status : Contact us for delivery
Brand : Dwyer
Stock Status : Out of Stock

Part Number : DXW-11-153-3

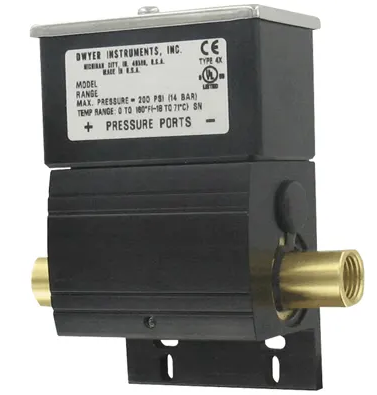

The Series DX is a differential pressure switch designed to produce a contact output based on the difference between two pressure sources. Its wetted materials, including brass and flouroelastomer, are suitable for use with most gases and water-based solutions. This switch can be utilized for indicating low differential pressure, with a set point for pressure decrease as low as 1 psid (0.07 bar). It offers differential set point ranges from 2.5 to 75 psid (0.17 to 5.17 bar) for increasing differential pressure and 1.0 to 67 psid (0.07 to 4.62 bar) for decreasing differential pressure. The unit boasts a high static pressure rating of 200 psig (13.8 bar) for applications with higher static pressure. Standard features include a weatherproof UL type 4X enclosure suitable for dusty, outdoor, or wash-down installation environments. The Series DX incorporates an externally adjustable set point, integral mounting flange, and a removable electrical terminal block for swift and straightforward installation. It utilizes opposing diaphragms to sense high and low pressure, employing a pivot mechanism to transfer the pressure difference to the SPDT switch.

Quantity:
Provide Calibration Services
  • Specification
  • Features
  • Catalog
