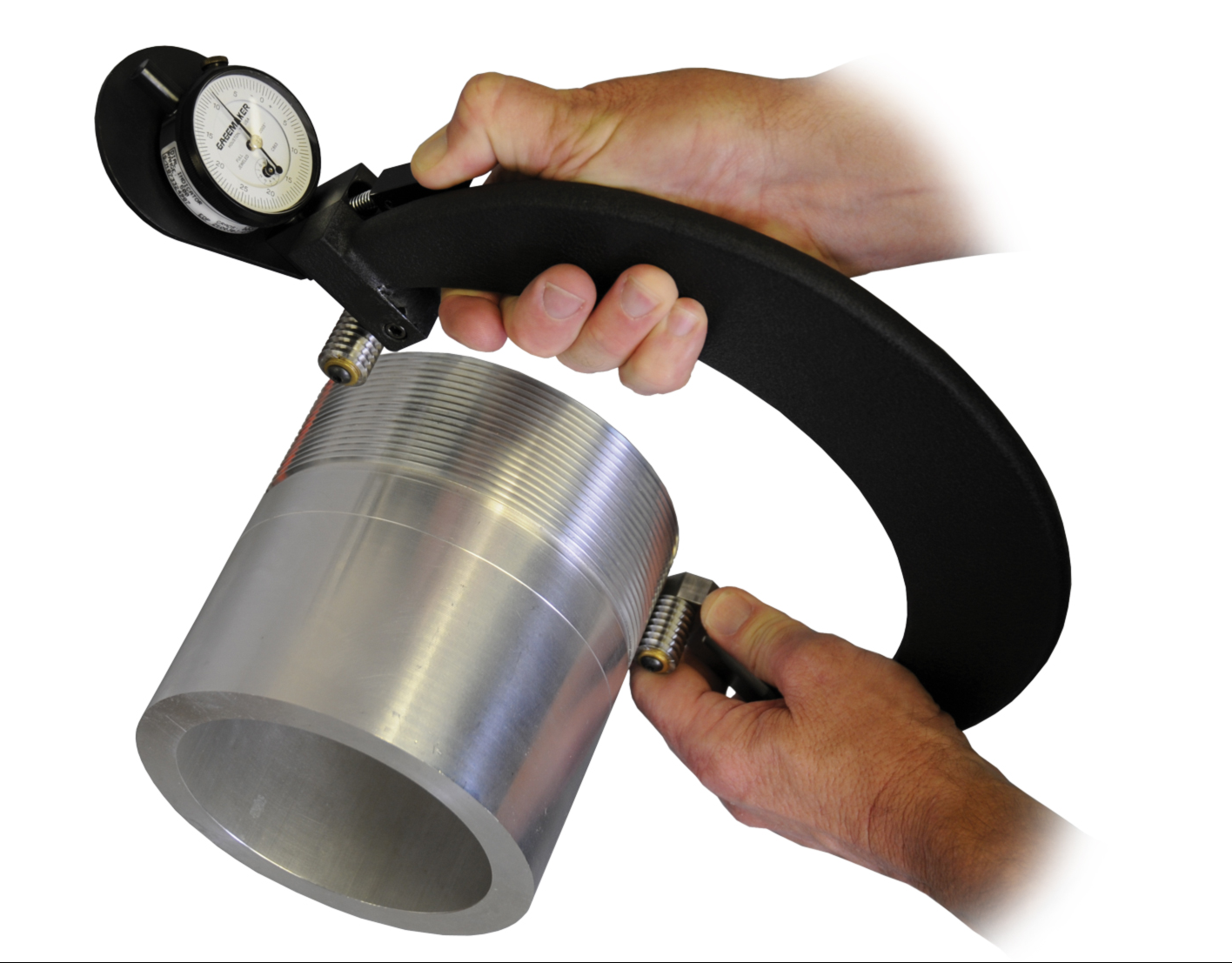

Name: Gagemaker RG-7000, 5/8 - 4 (15.9 mm -101.6 mm) Range, 0.0005 Resolution, 1/2 Travel External Thread Roll Gauge
Rating: 4.7 (25 reviews)

Gagemaker RG-7000, 5/8" - 4" (15.9 mm -101.6 mm) Range, 0.0005" Resolution, 1/2 Travel External Thread Roll Gauge

Gagemaker RG-7000, 5/8" - 4" (15.9 mm -101.6 mm) Range, 0.0005" Resolution, 1/2 Travel External Thread Roll Gauge

Brand :

Stock Status :

In Stock

Brand :

Stock Status :

In Stock

Part Number : Gagemaker RG-7000

External thread sizes ranging from 5/8" to 24" are measured with these functional size inspection (or "GO/NO GO") gauges. The gauges are adjustable within a size range and measure different pitch threads with interchangeable thread rolls. The TDWIN Thread Disk Software allows you to set the dimensions for the functional pitch diameter gauges. Indicators have a travel of.5 inches and a resolution of 0.0005 inches, with higher resolutions possible. Sets of thread rolls are not included. The thread rollers and the software are offered separately.

Specification
Features
Catalog

Specifications

Details

Range

5/8" - 4" (15.9 mm - 101.6 mm)

Resolution

0.0005"

Type

External Thread Roll Gage

Brand

Gagemaker

Indicator Travel

1/2"
