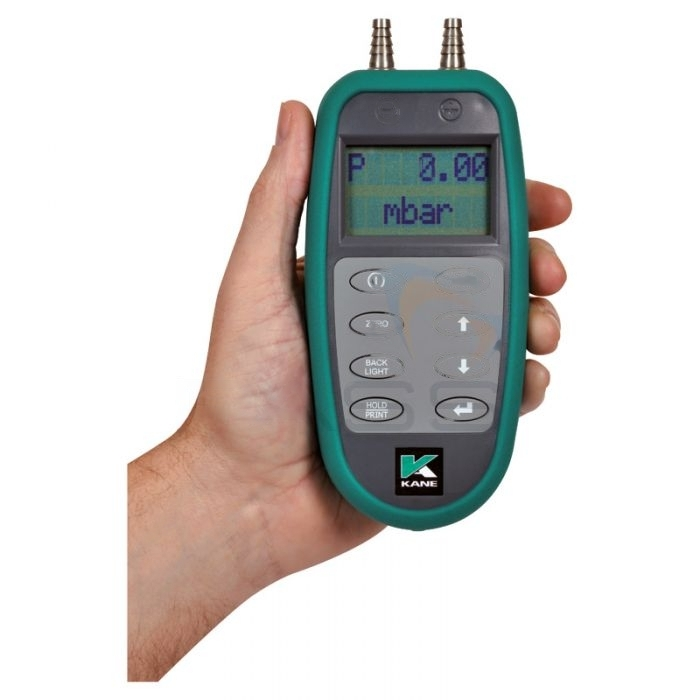

Kane 3500-1 | Differential Pressure Meter | Range 80mbar

Brand :

Stock Status : Contact us for delivery

Brand :

Stock Status :

Out of Stock

Part Number : Kane 3500-1

The 3500-1 is the entry-level product in Kane's differential pressure metre line, and it measures low pressures to 80mbar with high accuracy, making it ideal for testing flue draughts or the differential pressure of gas/air ratio valves on boilers. The tester allows you to choose between mbar, Pa, hPa, kPa, mmHg, mmH20, inH20, and PSI measurement units by pressing a button. Measurements are always as accurate as possible thanks to dedicated high/low resolution switching and a smoothing function that dampens pulsing pressure readings. The Kane 3500-1 includes temperature compensation, which reduces drift caused by temperature changes and ensures accuracy when moving the metre from one temperature to another.

Specification
Features
Catalog

Specifications

Details

Range

±20Pa to ±80hPa

Resolution

0.1pA to 0.01hPa
