Mitutoyo 568-966 Digital ABS Borematic (Internal) Set Inch/Metric, 0.5-1", Complete Unit Set

Brand :

Stock Status : Contact us for delivery

Brand :

Stock Status :

Out of Stock

Part Number : 568-966

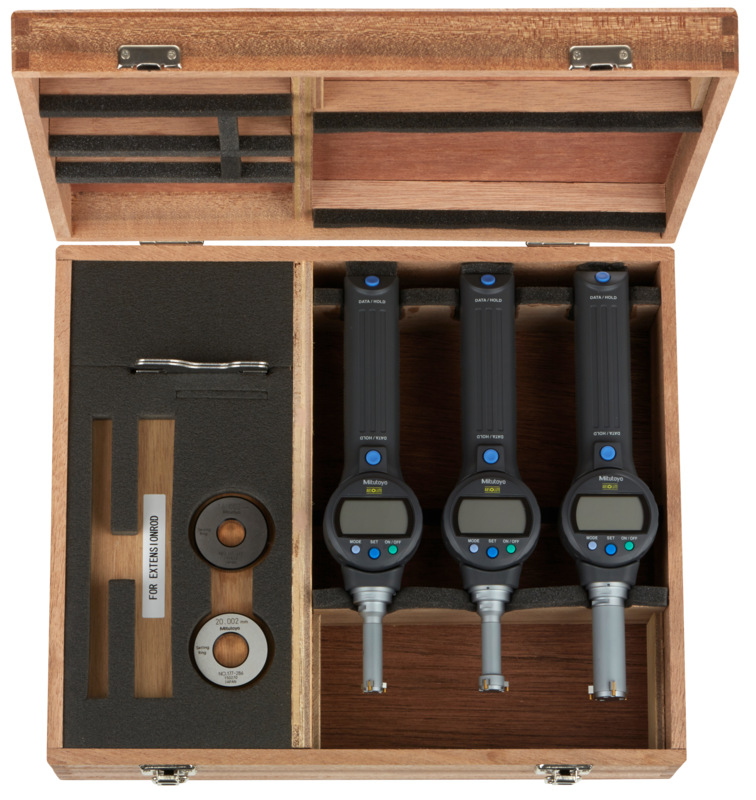

This is a Three-Point Digimatic Snap Open Bore Gauge Set with a display unit for each measuring head. It offers you the following benefits: It enables you to take measurements easily and quickly. Titanium-coated measuring pins gives you excellent durability and impact resistance. 330° rotatable display unit also gives you easy reading at any angle. GO/NG tolerance judgement function.

Specification
Features
Catalog

Specifications

Details

Mass (main unit)

1520 g

Battery Life

approx. 5000 hours

Display

LCD, character height: 11 mm

Delivered

Including box, key, 1 battery, certificate of inspection

Data Output

Yes

Analog/Digital

Digital

Measuring surfaces

Titanium coated hardened steel taper: tungsten carbide

Inch-Metric

Inch/Metric

ZERO/ABS

Yes

ON/OFF

Yes

PRESET (preselection)

Yes

GO/±NG judgement

Yes

GO/±NG judgement on LCD

Yes

DATA / HOLD (Holding value) function

Yes

DATA(output with cable)/HOLD(display value)

Yes

Individual ranges

0.5-0.65

Setting rings included

Ø0.65
